Portable fence gate for temporary and construction sites.

The entranceway is essential and necessary to be installed in any sites. But for the temporary site, the vehicles may enter the sites to stay overnight and the traffic may be higher overall. So, the portable fence gate are necessary for the site. There are two kinds of portable fence gate: vehicle portable fence gate and pedestrian portable fence gate. The two kinds of portable fence gates supply the different entranceway to the vehicle and pedestrian, which can get rid of the disordered entrance and keep normal order.

Vehicle Portable Fence Gates

Vehicle portable fence gate.

Vehicle portable fence gates are often used surrounding the buildings and construction sites. They are designed for the access of vehicles.

The vehicle portable fence gates are suitable to use with any style of temporary fencing. It is easy to assemble the vehicle gate. Just inset the post into the neighbour panel’s feet and then use the couplers to fix it.

Specifications

• Wire diameter: 3.5mm, 4mm.
• Mesh size: 6mm × 150mm.
• Panel size: 2500mm (L) × 2100mm (H).
• Frame size: O.D. 32mm, 38mm, 40mm.
• Thickness: 1.5mm, 2.0mm, 2.5mm.
• Finish treatment: hot dipped galvanized.
• Zinc thickness: 42 microns or 14 microns.

Pedestrian Portable Fence Gates

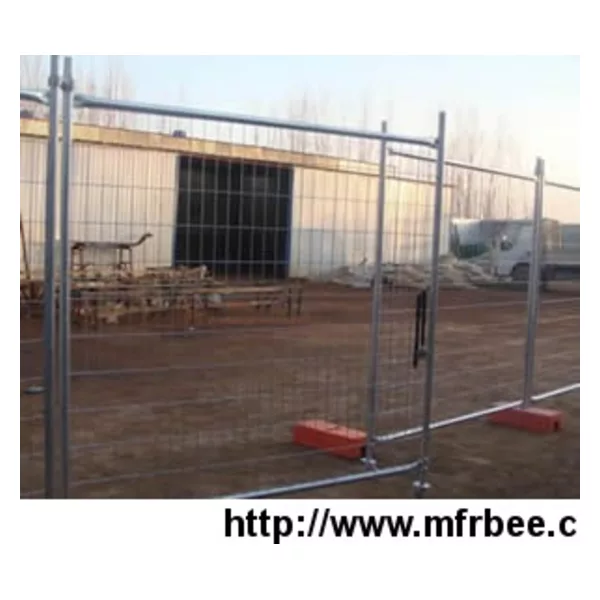

Pedestrian portable fence gate.

The pedestrian portable fence gates are designed only for the entranceway for personnel entering a site on foot. They can minimize the potential security and safety hazard by separating the entranceway of vehicle and foot.

The pedestrian portable fence gates can be easily installed and added at any point in your system.

Pedestrian gates can be used in a wide range of locations, such as the construction and demolition sites, new housing development sites and temporary building.

specifications

• Wire diameter: 3.5mm, 4mm.
• Infilled mesh: 60mm × 150mm.
• Panel size: 2100mm (H) × 1000mm (W).
• Frame: O.D. 32mm, 38mm, 40mm.
• Frame thickness: 1.5mm, 2mm.
• Finish treatment: hot dipped galvanized.
• Zinc thickness: 42 microns or 14 microns.

Portable Fence Accessories

There are some accessories in both the vehicle gate system and pedestrian gate system. They are gate coupler, wheels and chain padlock.

• The coupler make the vehicle gate swing 180° easily and less effort.
• The wheels can be installed on the gate to burden the weight of the gate and assure the gate to open and close smoothly.
• The chain & padlock can be used as sliding latch to provide a higher level security to the site.

Portable fence gate coupler.

Portable fence gate wheel.

Chain padlock of the portable fence gate.

Other temporary gate

We can also supply other portable fence gate suit for the Canada portable fences, chain link portable fences andCrowd control barriers. You can tell us the specifications, and we can supply them according to your requirements.

Canada portable fence gate.

Crowd control barrier gate.

Chain link portable fence gate.
