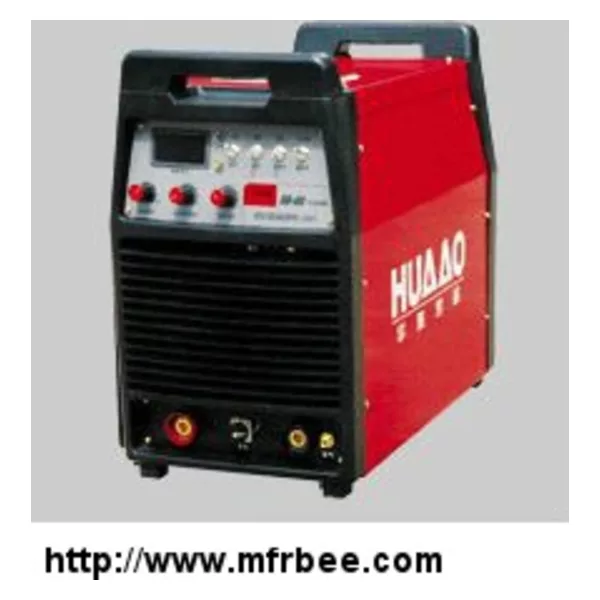

WS 315A Argon Arc welding machine

Operation Method Of 2 Steps And 4 Steps
TIG welding machine high frequency and touchable arc striking
Current Decay Slope 0-5 Minutes
Welding current continuously adjustable
Place Of Origin
Argon arc welding and manual welding, one machine two uses
Adjustable Crater Current
Time of lag stop 0-5 minutes adjustable
Striking Current Continuously Adjustable
Thrust current continuously adjustable
Digital Display Current And Voltage
Overheat indication and overload protection
Packaging
Canton
Delivery
15 Days

Product model WS-315
Rated input voltage AC(V) Three-phase 380
Power frequency (HZ) 50/60
Rated input capacity (KVA) 13
Output open circuit voltage (V) 74±5
Current range (A) 20-315
Thrust current range (A) 10-180
Start arc current range (A) 20-120
Rated cyclic duration factor (%) 60
Weight (kg) 38
Dimension (mm)(L*W*H) 570*320*530
