Magnetic Roll Separator , Magnetic Roll Separators Manufacturers

Place Of Origin: chennai

Packaging: N/A

Delivery: N/A

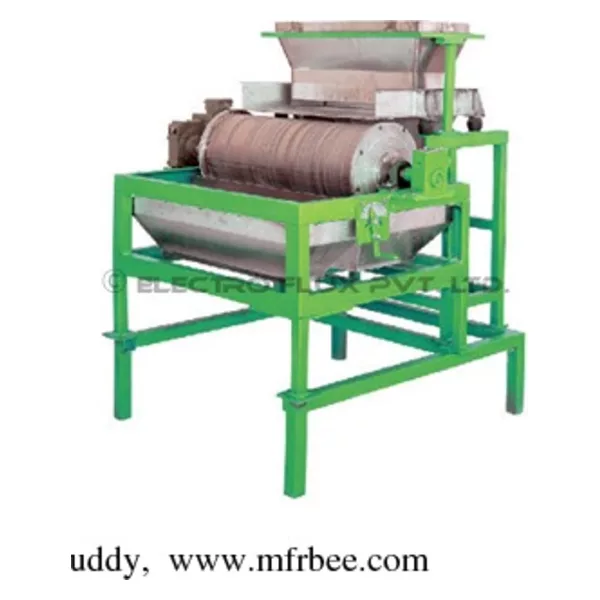

Magnetic Roll Separator

Electro Flux Magnetic Roll Separator Is used to remove fine iron contamination from the products such as Silica sand, quartz, magnesite, feldspar, dolomite, food products, chemicals, ceramics, etc.

Magnetic Roll Seperator

Magnetic Separator consist of Hopper, Electro magnetic Feeder with Dimmer control, Roll Construction, Drive Motor, Adjustable Splitter Plates, Control Panel.
Rare earth roll separator has a powerful rare earth magnetic roll, which also functions as a head pulley. As the product on the belt passes over the rare-earth magnetic roll, Ferrous particles stick to the belt while the non-ferrous particles fall freely off the belt into the non-magnetic chute due to centrifugal force.
Adjustable splitters are provided to ensure an optimum magnetic /non-magnetic split. Roll speed is variable and can be adjusted from 40 RPM to 400 RPM thereby enabling the aid of centrifugal force in separation of the magnetic and non-magnetic.
Feed Hopper:
Non-magnetic stainless steel construction, finely controlled adjustable feed gate with positive shut off designed for uniform feed with minimum bounce.
Roll Construction: The magnetic rolls incorporated in our machines have been specially designed and developed to generate exceptionally high magnetic field and gradient. The rolls which are built using rare earth Nd-Fe-B are manufactured to very low dimensional tolerances.

Magnetic Roll Seperator

Roll Construction:
The magnetic rolls incorporated in our machines have been specially designed and developed to generate exceptionally high magnetic field and gradient. The rolls which are built using rare earth Nd-Fe-B are manufactured to very low dimensional tolerances.
Drive Motor:
Can be constant or variable speed according to the capacity and the range of separation.

Magnetic Roll Seperator

Adjustable Splitter Plates:
In stainless steel normally consist of a single splitter, however in certain cases splitter plates can be fitted with provision for middlings product for different modes of treatment.
Chutes:
All chutes are stainless steel and are designed to withstand abrasion and to eliminate blockages.

Country: India
Business Type:
Market:
Founded Year:2005
Address:109/20, Vanavil Apartments, East Main Road, Anna Nagar West Extn., Chennai - 600 101, India.
Contact:Palani Samy
