Circular Lifting Magnet , Circular Lifting Magnets Manufacturers

Place Of Origin: chennai

Packaging: N/A

Delivery: N/A

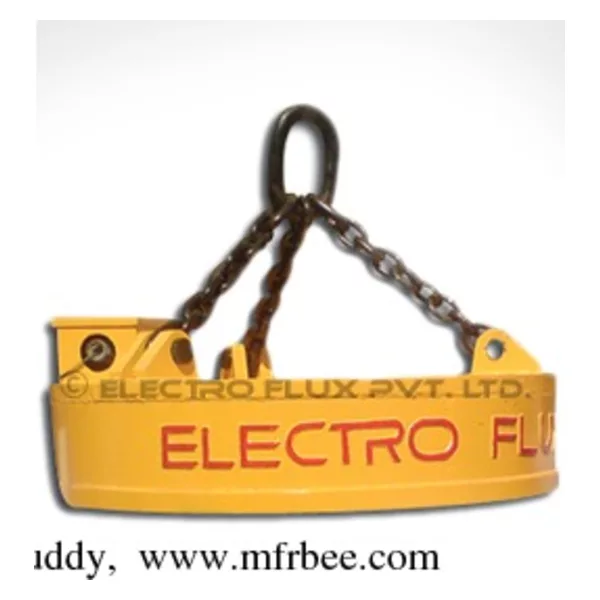

Circular Lifting Magnet

ELECTRO FLUX Circular Lifting Magnet can handle tones of scrap continuously throughout the day. It is used in metalworking plants to hoist and transport steel parts, forgings, casting, plates, booms, channels, angles, rods and bars. They save time and effort because they can lift steel more quickly and conveniently than any other mechanical device.

ELECTRO FLUX Scrap Lifting Magnets feature the highest lifting capacity. It can handle tonnes of scrap continuously throughout the day. It is used in metalworking plants to hoist and transport steel parts, forgings, casting, plates, booms, channels, angles, rods and bars.
They save time and effort because they can lift steel more quickly and conveniently than any other mechanical device. With a lifting magnet there is no need to attach and secure lifting supports and nor is it necessary to block up loads on the floor or to move for mechanical devices.

Applications
Applied to lifting and transporting magnet-conductive materials such as steels and irons in metallurgy industry ,mine industry,machinery industry and transportation industry and etc.

Features
Rugged-all-welded construction with good moisture-proofing strong attraction force and low energy consumption. The energizing coils are designed to improve the electrical property and mechanical property of the energizing coils. Heat-resistant grade of insulating material reaches Grade C with long service life. Simple and convenient installation,operation and maintenance.

ELECTRO FLUX Scrap Lifting Magnets TERMINAL BOX is designed to ensure protection whilst in operationand are of double entry type enabling the leads from the coils to be sealed in a separate cavity.
The outsidecable is brought through a gland into this second compartment ensuring no possibility of moisture entering the windings. MAGNETIZING COILS for magnet size up to 900 mm dia is pure annealed wire wound and above these are strip wound. The glass insulation of class H standard with Fibreglass NOMEX tape forming an interlayer makes coil withstand high temperature.
