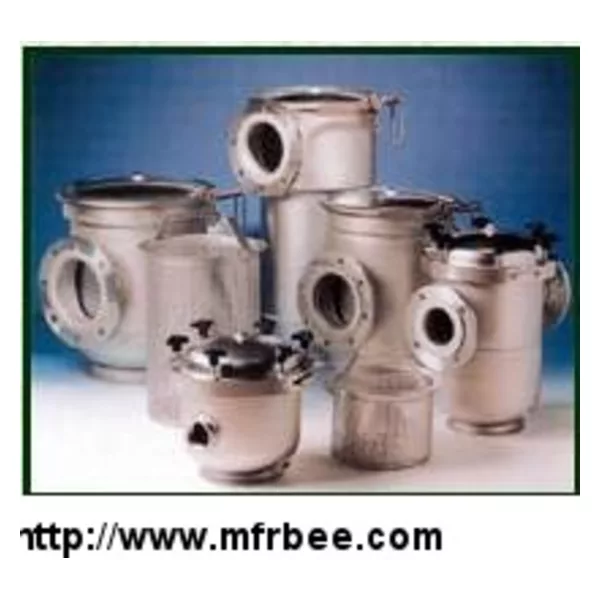

Stainless Steel Basket Strainer

Basket Strainer Technical characteristics:

Material stainless steel 304 or 316

Vent, drain 1/2＂, 3/4" or as required

Applications:

These Basket Strainers or filters have an extractable basket. They are used for civil and industrial applications in pumping systems

for wastewater treatment, cooling water, prefiltration and process water and for installation before electro pumps in order

to avoid that coarse solids obstruct damage impellers.

Basket Strainer Construction:

Goole Basket Strainer is fabricated from SS Sheet Metal and SS Meshes with Basket Shape inside.These filters with extractable basket are completely manufactured from stainless steel AISI 304 or AISI 316. The

AP models can work with a maximal working pressure of 8 bar, while all the other models can work with a maximal

working pressure of 3 or 6 bar. In the models TF the raw water flows in the filtering basket; all other models have the

water inlet directly in the filtering basket. The inlet and outlet connections are threaded ports ISO 228/1 or free flanges

PN10. In the cover and on the bottom there aare two welded muffs for venting and for the draining of the filter. The

cover is closed by clamp with a lever. For all models the locking is very easy and effective. After manufacturing

all filters are pickled and passivated by immersion. These unique filters are designed to provide performance

over along service life with minimal maintenance. A real economical answer to fluid filtration. By installing adequate

filtration systems one could make significant cost savings.
