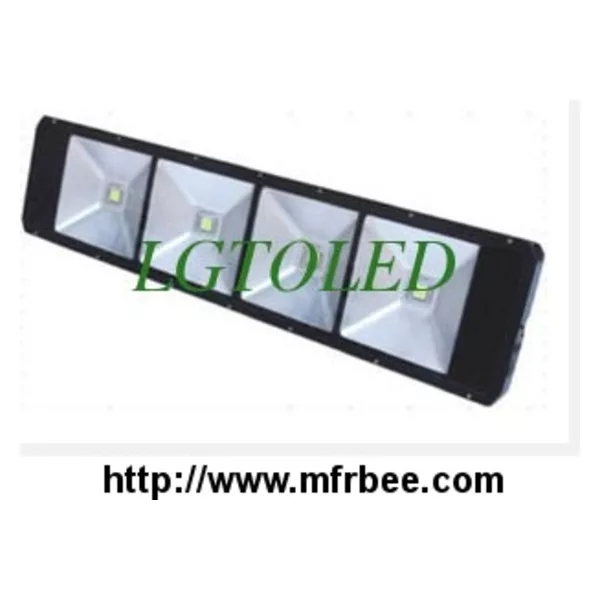

120 degree LED Tunnel Light 200W

Model NO.
LGTO-LT-200W
Color
WW/NW/CW/RGB
Longlife Span
50.000 hours
Input Voltage
AC 85-265V
Material
Aluminum
Certificates
CE&RoHS
Packaging
N/A
Delivery
15 Days

120 degree LED Tunnel Light 200W

Features:
Bridgelux or Epistar chip integrated COB LED, high brightness and long lifespan
Multiple color for customers to choose: white, red, green, blue, and yellow
Aluminum alloy die-cast baking varnish heatsink, clear tempered glass, ensures good heat dissipation, life span is at least 50,000 hours
Outdoor used, IP65 qualified
Energy saving, compared with traditional sodium lights, it can save electricity more than 80%
No ill glare; no abrupt and frequent flashes
No delay start,no waiting. It can reach its normal light as soon as it is turned on, not require long time start process of traditional lights
Environment friendly. Not contains lead, hydrargyrum, and any other contamination, no pollution, No radiation, recyclable.

Characteristic:

Product Name Led Tunnel Light
Model NO. LGTO-LT-200W
Input Voltage: AC85~265V
Frequency Range 50Hz~60Hz
Total Harmonic Distortion < 9%
Power Factor >0.98
LED Working Voltage DC30~36V
LED 4 pc Bridgelux or Epistar COB LED
Power Consumption 4*50W
LED Luminous Efficiency 80~110lm/W
Beam Angle 110 degree
LED Initial Flux WW(2,700K~3,300K): >15900lm
PW(4,000K~5,000K): >16100lm
CW(5,300K~7,000K): >16000lm
Average Illuminance Height of 4 meter: 228.2LUX
Height of 6 meter: 156.3LUX
Height of 8 meter: 71.5LUX
Lamp Efficiency >85%
Illuminance Uniformity >0.6
Color Temperature 2700~7000K
Color Rendering Index WW: Ra>68, PW,CW: Ra>75
Light Distribution Sysmmetric/ Rectangle
Junction Temperature <80 ℃
Operation Temperature from -40 ℃ to + 55℃
IP Grade IP65
Life Span at least 50,000 hours
Connect Wire L/N/G
Housing Material Aluminum

Application:

Tunnel, train, archway of bridge, culvert, bus station, undergroud parking garage, gymnasiums, yards, advertising boards,buildings, lawns, garden designs and so on for outdoor
