80W led tunnel light hight quality CE&RoHS
Product Quick Detail
- Model NO.
- LGTO-LT-80W
- Color
- WW/NW/CW/RGB
- Longlife Span
- 50.000 hours
- Input Voltage
- AC 85-265V
- Material
- Aluminum
- Certificates
- CE&RoHS
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

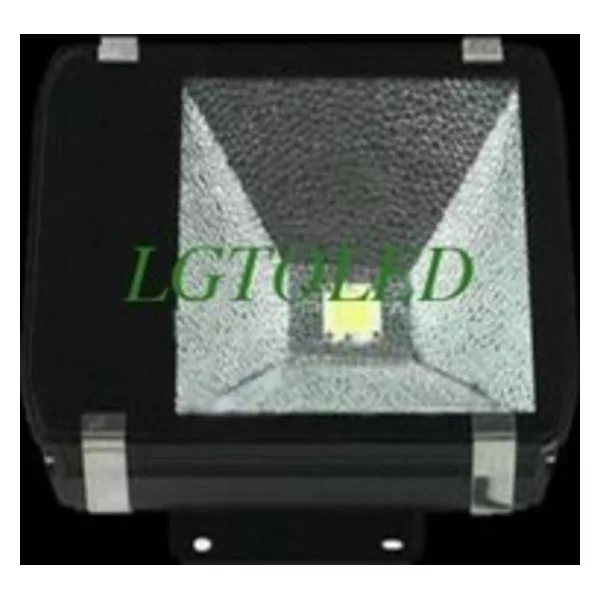

80W led tunnel light hight quality CE&RoHS
Features:
Bridgelux or Epistar chip integrated COB LED, high brightness and long lifespan
Multiple color for customers to choose: white, red, green, blue, and yellow
Aluminum alloy die-cast baking varnish heatsink, clear tempered glass, ensures good heat dissipation, life span is at least 50,000 hours
Outdoor used, IP65 qualified
Energy saving, compared with traditional sodium lights, it can save electricity more than 80%
No ill glare; no abrupt and frequent flashes
No delay start,no waiting. It can reach its normal light as soon as it is turned on, not require long time start process of traditional lights
Environment friendly. Not contains lead, hydrargyrum, and any other contamination, no pollution, No radiation, recyclable.
Characteristic:
| Product Name | Led Tunnel Light |
| Model NO. | LGTO-LT-80W |
| Input Voltage: | AC85~265V |
| Frequency Range | 50Hz~60Hz |
| Total Harmonic Distortion | < 9% |
| Power Factor | >0.98 |
| LED Working Voltage | DC30~36V |
| LED | 1 pc Bridgelux or Epistar COB LED |
| Power Consumption | 1*80W |
| LED Luminous Efficiency | 80~110lm/W |
| Beam Angle | 110 degree |
| LED Initial Flux | WW(2,700K~3,300K): ＞6520lm PW(4,000K~5,000K): ＞6550lm CW(5,300K~7,000K): ＞6530lm |
| Average Illuminance | Height of 4 meter: 148.4 LUX Height of 6 meter: 49.3LUX Height of 8 meter: 27.6LUX |
| Lamp Efficiency | >85% |
| Illuminance Uniformity | >0.6 |
| Color Temperature | 2700~7000K |
| Color Rendering Index | WW: Ra>68, PW,CW: Ra>75 |
| Light Distribution | Sysmmetric/ Rectangle |
| Junction Temperature | <80 ℃ |
| Operation Temperature | from -40 ℃ to + 55℃ |
| IP Grade | IP65 |
| Life Span | at least 50,000 hours |
| Connect Wire | L/N/G |
| Housing Material | Aluminum |
Application:
Tunnel, train, archway of bridge, culvert, bus station, undergroud parking garage, gymnasiums, yards, advertising boards,buildings, lawns, garden designs and so on for outdoor
