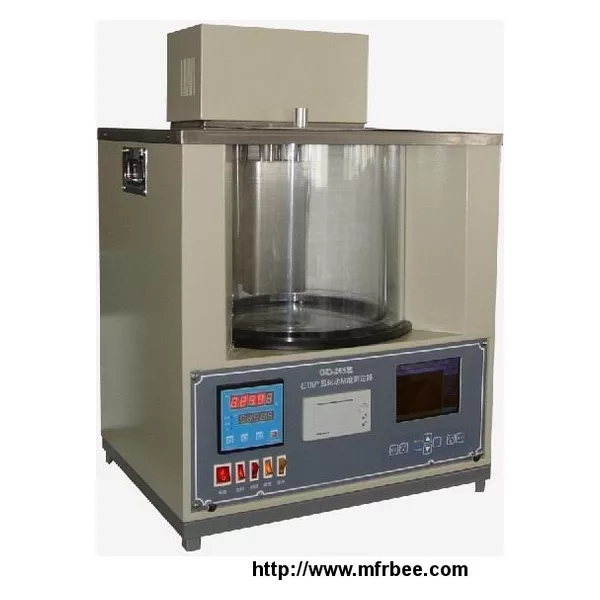

Gd-265h Petroleum Products Kinematic Viscosity Tester

Summary
This instrument is designed and made as per the industry standard of People’s Republic of ChinaSY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester, GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer at a constant temperature.

I. Main Technical Features

1. Single chip microcomputer and colored LCD technology. High intelligence and automation.

2. Intelligent signal sampling, data measuring, parameters operating, and result output. All the operations are finished automatically.English man-machine conversation interface. Easy to operate.

3. The instrument is equipped with timing function. It can choose valid flowing time period and calculate arithmetic average automatically. It can also preset the viscosity coefficient , calculate the viscosity after the test and print the test results automatically.

4. It can do one test alone or doing two tests at one time by setting the parameters.High efficiency.

5. It has the parameters saving function. The instrument will automatically save the parameters of capillary tube diameter, coefficient and so on after these parameters being setted. When doing test with the same capillary, no need to set these parameters again.

6. It adopts desktop and all-in-one machine design. Convenient to use.

II. Main Technical Specifications

1. Power supply：AC(220±10%)V, 50Hz

2. Bath heating power：1700W

3. Temperature range：Room temperature~100.0℃

4. Temperature control accuracy：±0.01℃

5. Bath volume：20L

6. Timing range： 0.0s~9999.9s

7. Timing accuracy： ±0.05% within 60min

8. Amount of capillary viscometer tubes： 4 capillary viscometers

9. Stirring motor： Power 6W, rotating rate 1200RPM

10.Working condition： ambient temperature-10℃~35℃, RH: ≤85％

11.Temperature sensor： RTD, Pt100

12.Maximum power consumption： 1800W

13.Capillary viscometers tubes(Pinkevitch viscometer)： 7 pieces in total.The inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm

14.Dimension： 530mm×400mm×670mm
