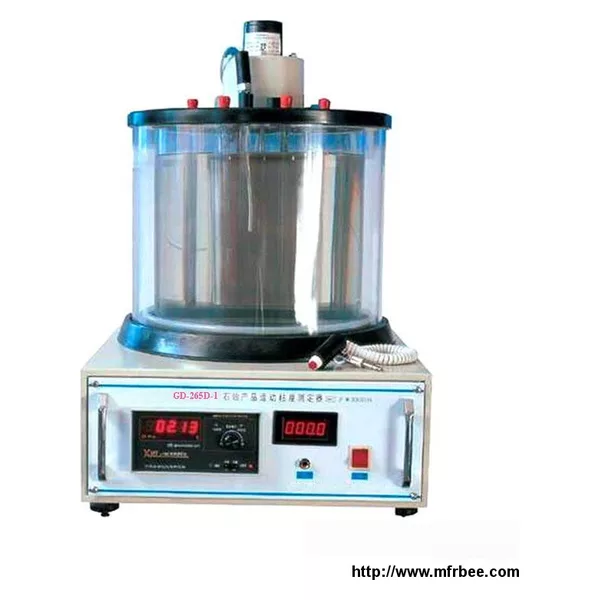

GD-265D-1 Petroleum Products Kinematic Viscosity Tester
Product Quick Detail
- Place Of Origin
- Chongqing of China
- Packaging
- Wooden Case
- Delivery
- 7 Days
Specifications
Summary
This instrument is designed and made as per the industry standard of People’s Republic of ChinaSY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity
Tester, GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and ASTM D445 Standard Test Method for Kinematic
Viscosity of Transparent and Opaque Liquids. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian liquids) by measuring the time for a volume of liquid to
flow under gravity through a calibrated glass capillary viscometer at a constant temperature.
Note: This instrument is equipped with 7 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers according to customer's requirements.
I. Main Technical Features
1. The instrument is a kind of specially-made testing machine which the temperature control accuracy can reach ±0.01℃ and having digital display.
2. It adopts hard glass bath and heat preservation cover(double shell).Good heat prevention and easy to observe the sample.
3. It adopts desktop and all-in-one machine design,convenient to use.
4. It adopts electric stirrer to ensure the uniform of bath temperature.
II. Main Technical Specifications
1. Power supply： AC 220 ± 10 %, 50 Hz.
2. Heating power：1000W(auxiliary heating), 600W(temperature control heating)
3. Power for stirrer： 6W, rotating speed：1200RPM
3. Power for stirrer： 6W, rotating speed：1200RPM
4. Temperature range： room temperature~100 ℃.
5. Temperature control accuracy： ±0.01℃.
6. Timer： 0.0s~999.9s
7. Constant temperature bath： 20L, double shall structure.
8. Ambient temperature： -10℃~+35℃
9. Relative humidity： ＜85％.
10.Maximum power consumption： 1800W.
11.Capillary viscometer tubes(Pinkevitch viscometer)： 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm
12. Dimension： 530mm×400mm×670mm Net weight： about 42Kg
Note: This instrument is equipped with 7 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers according to customer's requirements.
