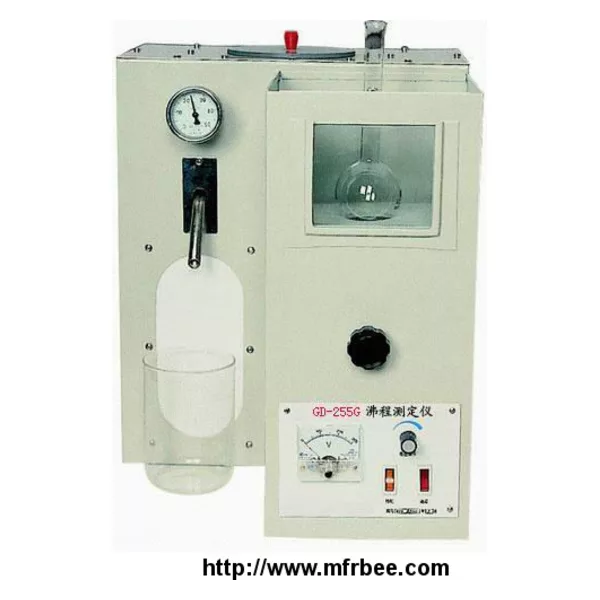

GD-255G Distillation Tester

Product Quick Detail

Place Of Origin
China (Mainland)
Packaging
Packed in Wooden Case
Delivery
7 Days


Summary
The instrument is designed and made as per the National Standard of People’s Republic of China GB/T7534-2004 “Test Methods for Boiling Range of Volatile Organic Liquids for Industrial Use”. It is suitable to determine boiling range of volatile organic liquids for industrial use and organic solvents for material. If you prepare proper flasks, it can also be used to determine distillation characteristics of gasoline, aviation gasoline, jet fuels, solvents having special boiling point, naphtha, diesel oils, distillate fuels, and similar petroleum products.

I.Main Technical Features
1.Desktop and front-view structure.Easy to operate.
2.Heating is controlled by a furnace.The heating power can be adjusted continuously.
3.The rising up and lowering down can be adjusted by a lifting knob.Convient to operate.

II.Main Technical Specifications
1.Power supply: AC(220±10%)V,50Hz
2.Heating power: 1000W
3.Receiving cylinder: 100ml,division value 1ml
4.Distillation flask: As per GB/T 7534-2004. Made of hard glass. Outside diameter of ball is φ65mm. Inside diameter of bottleneck is φ16.9mm. The angle between branch pipe and bottleneck is 75°±3°.
5.Thermometer: Mercury-in-glass thermometer
6.Flask support board: SiC. Diameter for each isφ32mm,φ38mm
7.Ambient temperature: Room temperature∼+35℃
8.Relative humidity: ≤85%
9.Maximum power consumption: 1100W
10.Dimension: 460mm×400mm×500mm(Thermometer is not included)
