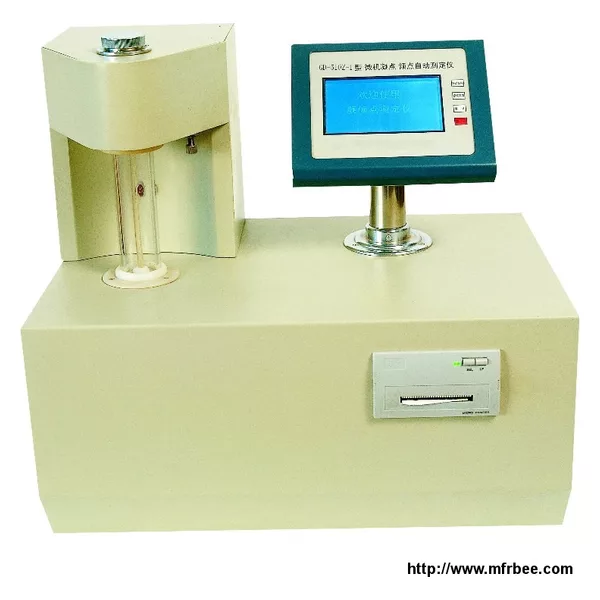

GD-510Z-1 Automatic Pour Point Tester
Product Quick Detail
- Place Of Origin
- Chongqing of China
- Packaging
- Wooden Case
- Delivery
- 7 Days
Specifications
Summary
It is made as per standards GB/T 510 Standard Test Method for Solidifying Point of Petroleum Products, GB/T3535 Standard Test Method for Pour Point of
Petroleum Products and ASTM D97 Standard Test Method for Pour Point of Petroleum Products. It is suitable to test the solidifying point and pour point of transformer oils
and other light oils(not suitable to oils with high thickness). It is a kind of high automatic instrument with advanced design. It achieves an intelligent management of the whole test procedures
without manual intervention.
I. Main Technical Features
1. It adopts single chip microcomputer to be the core of calculation and control,having man-machine dialog interface and menu prompt input functions. Operator can compile real-time
application software according to oil temperature changes.
2. It adopts LCD screen to track and display the state of oil temperature changes. The diagram shows dynamic stimulative working process.
3. It adopts high accuracy sensor and semiconductor refrigeration. The cooling rate is fast and test precision is high. The results are reliable.
4. The whole test procedures including injecting oil, determination, removing oil and test result printing are automatical.
II.Main Technical Specifications
1. Power supply： AC(220±10%)V, 50Hz±1Hz
2. Cooling rate： Over 40℃ within 10min
3. Cooling depth： -60℃
4. Repeatability of solidifying point： ≤2℃
5. Repeatability of cloud point： ≤3℃
6. Pressure of cooling water： 0.5kg/cm2
7. Ambient temp.： room temp.~30℃
8. Reproducibility： ±4℃
9. Maximum power consumption： 800W
10. Dimension： 480mm×360mm×470mm
