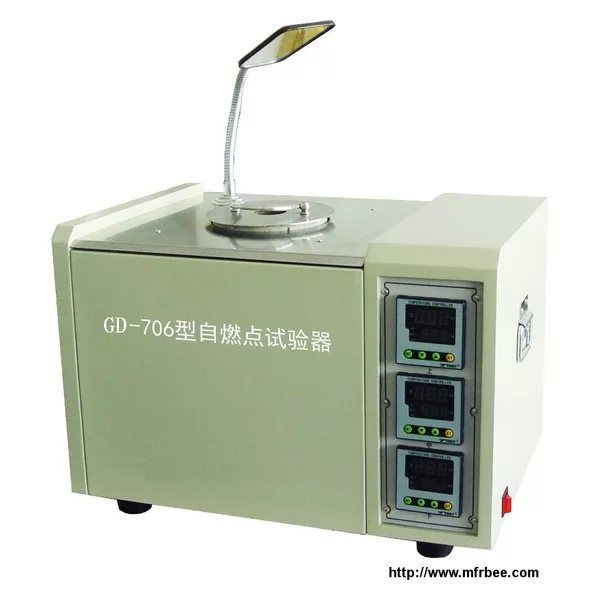

GD-706 Self-ignition Point Tester
Product Quick Detail
- Place Of Origin
- Chongqing of China
- Packaging
- Wooden Case
- Delivery
- 7 Days
Specifications
Summary
This instrument is designed and made as per standards DL/T706-99、IEC79-4：95. It is used to determine the lowest temperature of fire resistant oil and other special oils when burning in a flask.
I. Main technical features
High precision AI temperature controller. The heating is uniform. Good accuracy. Three-point temperature detection: center of bottom, center on side wall and top.
II. Main technical specifications
1. Temperature range： Room temperature ～800℃
2. Temperature control accuracy： Temperature difference ≤1℃ among the three points: center of bottom, center on side wall and top of flask.
3. Conical flask： 200 ml
4. Ambient temperature： Room temperature～50℃
5. Relative humidity： ＜80%
6. Power supply： AC（220±10%）V, 50Hz
7. Maximum power consumption： 2000W
8. Dimension： 540mm×310mm×270mm
This instrument is designed and made as per standards DL/T706-99、IEC79-4：95. It is used to determine the lowest temperature of fire resistant oil and other special oils when burning in a flask.
I. Main technical features
High precision AI temperature controller. The heating is uniform. Good accuracy. Three-point temperature detection: center of bottom, center on side wall and top.
II. Main technical specifications
1. Temperature range： Room temperature ～800℃
2. Temperature control accuracy： Temperature difference ≤1℃ among the three points: center of bottom, center on side wall and top of flask.
3. Conical flask： 200 ml
4. Ambient temperature： Room temperature～50℃
5. Relative humidity： ＜80%
6. Power supply： AC（220±10%）V, 50Hz
7. Maximum power consumption： 2000W
8. Dimension： 540mm×310mm×270mm
