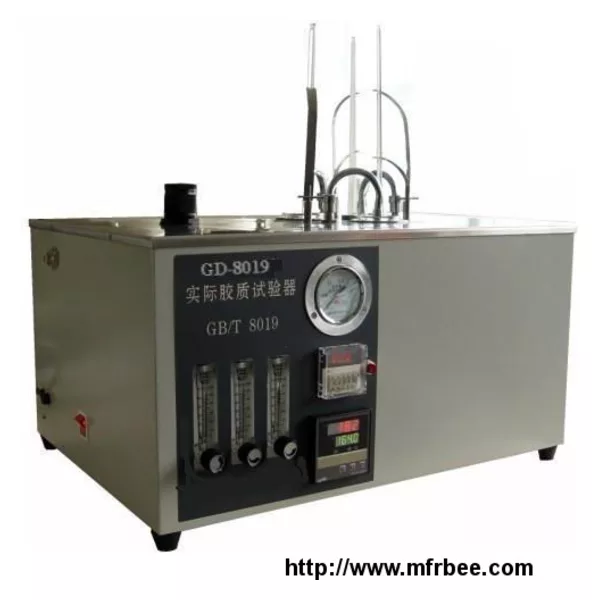

GD-8019 Existent Gum Tester
Product Quick Detail
- Place Of Origin
- Chongqing of China
- Packaging
- Wooden Case
- Delivery
- 7 Days
Specifications
Summary
This instrument is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel)
I. Main technical features
1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
3. The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.
II. Main technical specifications
1. Power supply： AC(220±10%)V，50Hz，2500W
2. Dimension of evaporation bath： φ260mm×130mm
3. Sample positions： 3 positions
4. Dimension of sample positions： φ51mm×70mm
5. Working temperature： (160～165)℃
6. Temperature control： Automatic
7. Temperature display： Digital display
8. Flow display： Displayed by a ball float type flowmeter.
9. Working pressure of air reducing valve： 0.035MPa。
10.Air source： External connection，over (1000±150)mL/s
11.Dimension： 590mm×480mm×340mm(Thermometer holder is not included)
（Note：A air compressor is equipped）
