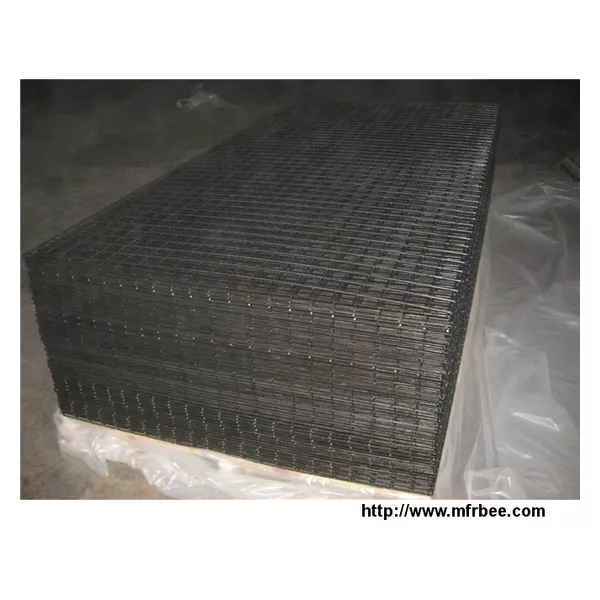

Welded wire mesh panel

Welded wire mesh panel

Materials: Gal. iron wire, stainless steel wire, PVC coated wire

Patterns: Welded before weaving, after weaving, galvanized before weaving and after weavingUses: Building, fences, feeding and protection use.

Characters:strong weldedpointsandbrightluster.Themeshdoesn’t

comelooseevenifcutinpartsorbeingexertedforceonparts.Comparedwithgeneralironwire,theproductsarebetterinrespectsofanti-corrosiveandanti-rust .

Usage:Theyarewidelyusedinindustry,agriculture,construction,transportandmining.Suchasmachineprotectioncover,ranchfender,gardenfence,windowprotectionfender,passagefender,fowlcage,eggbasket,foodstuffsbasket,etc.

According to the wire diameter and opening, we can offer standard welded wire mesh or heavy type welded wire mesh.

Specification List of Welded Wire Mesh:

Opening Wire Diameter

In inch In metric unit(mm)

1/4" x 1/4" 6.4mmx 6.4mm 22,23,24

3/8" x 3/8" 10.6mmx 10.6mm 19,20,21,22

1/2" x 1/2" 12.7mmx 12.7mm 16,17,18,19,20,21,22,23

5/8" x 5/8" 16mmx 16mm 18,19,20,21,

3/4" x 3/4" 19.1mmx 19.1mm 16,17,18,19,20,21

1" x 1/2" 25.4mmx 12.7mm 16,17,18,19,20,21

1-1/2" x 1-1/2" 38mmx 38mm 14,15,16,17,18,19

1" x 2" 25.4mmx 50.8mm 14,15,16

2" x 2" 50.8mmx 50.8mm 12,13,14,15,16

Technical Note:

1.Standard roll length: 30m;width: 0.5m to 2M

2.Special sizes available at request

PVC Coated Welded Mesh:

Opening Wire Diameter

In inch In metric unit(mm)

1/2" x 1/2" 12.7mmx 12.7mm 16,17,18,19,20,21

3/4" x 3/4" 19mmx 19mm 16,17,18,19,20,21

1" x 1" 25.4mmx 25.4mm 15,16,17,18,19,20

Technical Note:

1.Standard roll length: 30m;width: 0.5m to 2M

2.Special sizes available at request

PVC Coated Welded Mesh:

Opening Wire Diameter

In inch In metric unit(mm)

1/2" x 1/2" 12.7mmx 12.7mm 16,17,18,19,20,21

3/4" x 3/4" 19mmx 19mm 16,17,18,19,20,21

1" x 1" 25.4mmx 25.4mm 15,16,17,18,19,20

Technical Note:

1.Standard roll length: 30m;width: 0.5m to 2M

2.Special sizes available at request
