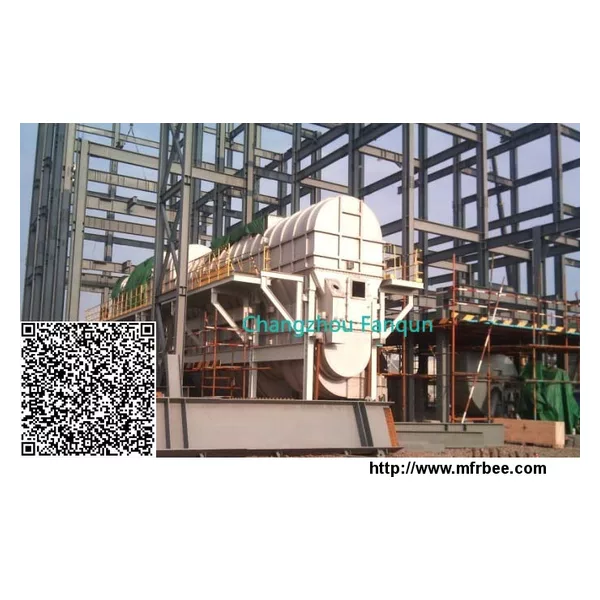

Changzhou Fanqun XF Fluid Bed

Changzhou Fanqun XF Fluid Bed - Changzhou Fanqun Drying Equipment - Top China Drying Equipment Manufacturer

*About Changzhou Fanqun XF Fluid Bed

Summary

XF Fluid Bed consists of air filter,heater,fluidizede-bed main machine,feeder,cyclone separator,bag duster,high-prressure centrifuge fan,operation table and so on.Because the properties of raw materials exist difference,when dust removing equipment is equipped,it should consider the practical needs.It can select cyclone separator and bag duster at the same time or one of then.In general speaking,it needs to select cyclone separator only for raw material that is large in specific gravity and bag suster for power and small granule raw materials that is light in specific gravity.Meanwhile there is complete feeder for selection.

Principle of work

Separated granule solid raw material is fed into fluidized-bed drier through feeder.Fresh air through filtering and heating is sent to the bottom of fluidized-bed by fan and contacts with solid raw material on distributing plate,in this way the fluidized state is formed and the heat exchange between air and solid is carried out.The dried raw material is discharged from outlet and wasted gas is exhausted from the top of fluidized-bed where catches solid power through cyclone separator,bag duster.

Heat source

Steam,electricity or hot air furnace can be used(it can supplied as request)

Scope of application

It is suitable for drying raw materials in bulk or granule,for example,in pharnaceutical industry:medical raw materials,granule for pressing tablet,drinking medicine of Chinese traditional medicine;in chemical industry:drying and dehumidifying of plastic resin,citric acid other power or granule raw materials;in foodstuff and grain process industry:drying for drinking amterial of foodstuff,maize embryo and feedstuff.In generally the diameter or raw materials will be 0.1～6mm.The best diameter will be 0.5～3mm.
