Waffle Speaker Grilles for Subwoofers

Why Do We Need Waffle Speaker Grilles

Waffle speaker grille, as its name implied, is characterized by convex structures to protect your valuable drivers from impact incurred during transportation and stage performance. They are constructed of black steel mesh and thick vinyl rubber edge that damps vibration effectively.

A black waffle speaker grille is fixed using clamps and screws to cover a subwoofer.

Black waffle speaker grilles are ideal for covering and protecting subwoofers.

Normally, waffle speaker grilles can be manufactured with a small depth of 3/8” to suit moderate excursion demand of guitar speakers and midrange speakers; meanwhile, it is available in depth of 5/8” or 3/4” to ensure clearance from high excursions.

Feature:

Wide and thick rubber trim for vibration control and rattle minimization.

Effectively protect your subwoofers from impact, cut, rip, tear and dent.

Square, round or custom perforated holes

Fit most types of speakers, woofers, car audio, DJ, loudspeakers and various home audio.

Speaker grille clamps and screws are included with grilles. Meanwhile, mounting hardware can be purchased separately.

Easy to install.

Do not flex them back and forth by hand as cheaper ones do.

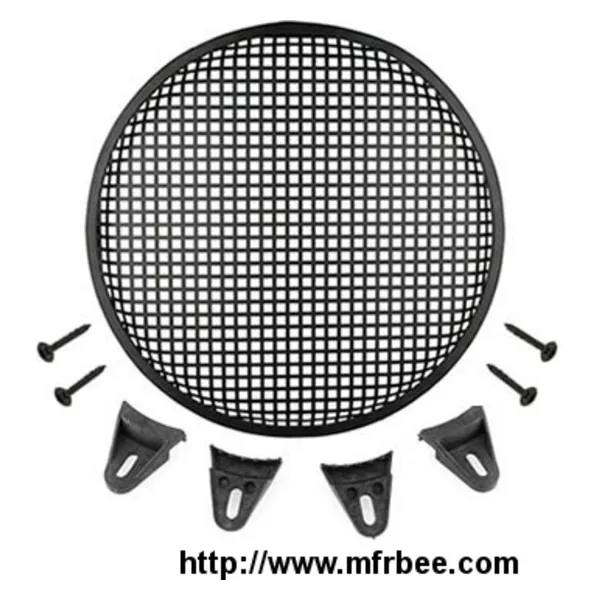

A square hole waffle speaker grille with four grille clamps and screws

Square hole waffle speaker grilleA round hole waffle speaker grille with four grille clamps and screws

Round hole waffle speaker grille

Product details:

Material: quality steel and rubber.

Fit for speaker diameter: 5”, 6”, 7”, 8”, 10”, 12”, 15”, and 18”.

Thickness: Medium duty 0.7mm, heavy duty 0.8mm to 1.2mm

Depth: 3/8” to 3/4” or others upon request.

Width of rubber edge: 5/16” to 7/16” or other custom width.

Color: black.

Accessory: four clamps and four screws.

Specification:

Medium duty waffle speaker grille

Model Speaker size Thickness Height Actual outer diameter

MWSG-1 5” 0.7mm 1/2” 5-1/8”

MWSG-2 6” 0.7mm 1/2” 6-5/8”

MWSG-3 8” 0.7mm 1/2” 8-3/16”

MWSG-4 10” 0.7mm 1/2” 10”

MWSG-5 12” 0.7mm 5/8” 12-1/8”

MWSG-6 15” 0.7mm 5/8” 15-1/8”

MWSG-7 18” 0.7mm 3/4” 18"

Heavy duty waffle speaker grille

Model Speaker size Thickness Actual inner diameter Actual outer diameter

HWSG-1 8” 0.8mm 7-3/8” 8”

HWSG-2 8” 0.8mm 7-3/8” 8-1/4”

HWSG-3 8” 1.2mm 7-1/16” 8-1/16”

HWSG-4 10” 1.2mm 9-1/8” 10-1/8”

HWSG-5 12” 1.2mm 11-1/8” 12-1/8”

HWSG-6 15” 1.2mm 14-1/4” 15-1/16”

HWSG-7 18” 1.2mm 17-3/8” 18-3/8”
