Dynamic Contrast Ratio (DCR)
Ultra-high Dynamic Contrast Ratio of 20,000,000:1 displays darker images
with more depth and detail.
LED Panel: Hg Free
Mercury (Hg) is poisonous, producing toxic environmental waste. Unlike the CCFL
backlight in traditional monitors, the LED backlight panel contains no Hg.
16.7 Million Colors
FRC 8-bit panel can display 0.5 million more colors than the typical TN
6-bit panel.
Ultra Low Power Consumption
The LED backlight panel requires 50% less energy than typical 4CCFL
monitors.
e-Saver
Software enables the user to set a low power configuration of the monitor when
the PC is in screen saving, PC off, and user absence. User can choose the time to
turn the monitor off, to save power consumption.
Hair-Line Texture
Brushed surface textures provide a luxury look and feel.

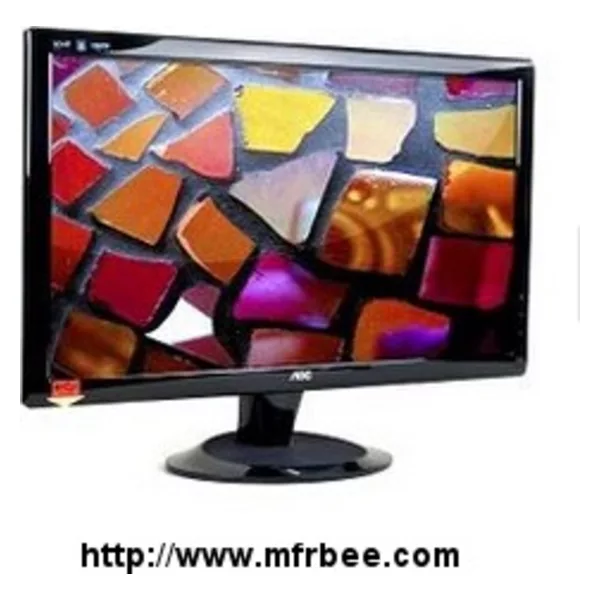

AOC 19.5 Inch LED Monitor E2070SWN Specifications:
Packing Pallets:19.5" W
FOB Factory:L&T
Panel size:19.5" W 170/160 (¥10)
Screen Ratio:16:9
Response Time (Typical):5ms
Recommonded Resolution:1600—900@60Hz
Contrast Ratio:600:1 (Typical),20000000:1 (DCR)
Brghtness (Typical) :200 cd/m2
Display Color:16.7M
Viewing Angel (H/V) 90/50
Viewable Image Size (mm):494.11
Display Area:433.92(H)—263.34 (V)mm
Pixel Pitch (mm):0.2712
Scan Frequency (H/V):30-83KHz/ 50-76Hz
Pixel Frequency:140MHz
Input Signal:Analog
Input Connector:15-pin D-Sub
Cable:D-sub
Input Power:100-240VAC, 50/60Hz
Power Supply:Build- in
Operation Mode (W):18W
Stand by Mode (W) <0.5W
Wall- Mount:VESA 100x100mm
Cabinet Color:Black
Phys. (W—H—D) mm: 464.63—346.35—156
Package Box (W—H—D) mm:519—359—107
Weight (Net/ Gross)(Kg):2.11/3.21
Tilt:-3°~10°
Temperature Operating:0°C ~+40°C
Temperature Non-Operating: -25°C - 55°C
Humidity Operating: 10% to 85%
Humiditiy Non-Operating:5% to 93%
Altitude Operating:12,000 feet
Altitude Non-Operating:40,000 feet
Safety Regulation:cCSAus,FCC,EPA 6.0,Windows 8,C-Tick,CH ROHS,CEL,CCC,ISO 9241-307,EPEAT,CECP
Special Features:1. Low Power with LED PANEL,2. Hair-Line Texture Design,3. High DCR 20m:1,4. E-saver/I-menu/Screen Plus software
Monitors can be customized by us according to your requirements.
Besides,we also provide all kinds of world famous brands of Monitors,includes the following brands:
Acer ,Samsung ,Viewsonic ,AOC ,LG ,Lilliput ,NEC ,Philips ,Lenovo ,Elo ,Eizo ,Hannspree ,Hyundai ,BenQ LCD ,Panasonic ,Hanns.G ,Plasma ,IPS ,etc.If you want to know more imformation of other
brand's monitor ,you could send us the product's modl number or part number you need to our E-mail box:touchscreen(at)esmachinery(dot)com or check our
sites:http://www(dot)as-touch-screen(dot)com/ All the detail information is in this sites.You also could search"A&S Photoelectric Induction High-Technology Co., Ltd."on the internet to find
our company.
