Round Bale Feeders and Square Feeder Panels
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Bale Feeders - An Easy Way of Hay Saving
Bale feeders provide an effective way of saving hays during feeding.
If you are a livestock keeper, especially a cattle or horse owner, you may aware that the price of hay has gone up drastically over the past few year. So saving hays appears particularly important nowadays. Here we will introduce a few affordable yet effective hay saving products - bale feeders(also known as hay feeders). All of our bale feeders are hot dipped galvanized or heavy color painted to resist rust and corrosion as well as ensure longer service life in outdoor applications.
According to your way of feeding livestock, two main types - round bale feeder and feeder panels are recommended for you. Round bale feeders are designed for feeding round bales to large cattle in tough situation while feeder panels are used to build square bales in sheds or barns for containing loose hay or silage to feed animals easily.
Various mounting methods can be used such as quick pin-latch connection, chain & pin hookups, chain hookups and others similar to steel corral panels.

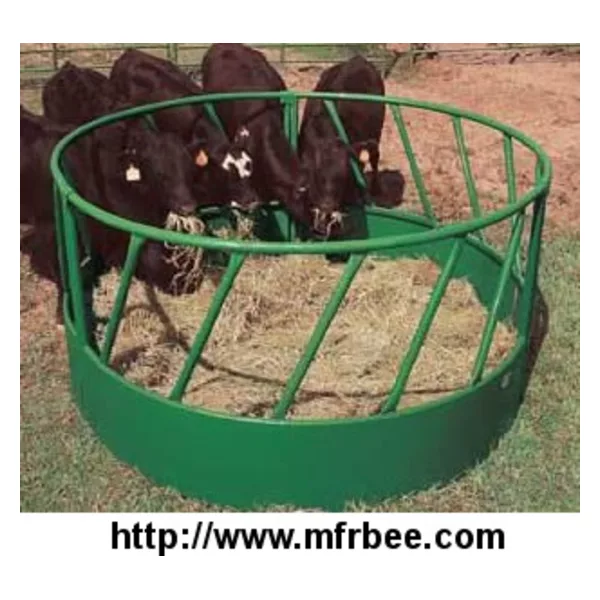

Round bale feeder
Round bale feeder RBF-1
Feature:
- With S-shaped bars to avoid animals getting inside.
- Vertical bar hay saver.
- Three-piece structure.
- Feeder diameter: 8'.
- Feeder height: 45".
- Material: 1-3/4" OD high tensile tubing.
- Hay saver height: 17".
Round bale feeder RBF-2
Feature:
- Slanted bars are welded on the outside for extra strength.
- Vertical bar hay saver.
- Two-piece structure.
- Heavy duty end post is tightly bolted.
- Feeder diameter: 8'.
- Feeder height: 45".
- Material: 1-1/4" round slanted bars and 1-7/8" flat oval or round frame.
Round bale feeder RBF-3
Feature:
- Four horizontal bars.
- Two-piece structure.
- Slanted bars to prevent cattle getting inside.
- Hay savers with three horizontal rails and vertical bars to minimize hay waste.
- Feeder diameter: 8'.
- Material: 1-3/4" OD tubular steel.
Round bale feeder RBF-4
Feature:
- Three-piece structure.
- Welded wire mesh is fixed to the hay saver.
- Feeder diameter: 8'.
- Feeder height: 45"
- Material: 1-3/4" round high tensile tubing.
- Hay saver height: 17", 20" or as custom request.
Round bale feeder RBF-5
Feature:
- Two-piece structure.
- Sheet bottom to prevent hay waste.
- Feeder diameter: 8'.
- Feeder height: 53" or 45".
- S-shaped bar spacing: 14".
- Material: 1-1/4" square or round 11 gauge tubing; 1-3/4" or 2" heavy duty tubing.
- Steel sheet height: 17" or 20".
Round bale feeder RBF-6
Feature:
- Two or three piece structure.
- Sheet hay saver.
- Feeder diameter: 8'.
- Feeder height: 53" or 45".
- Slant bar spacing: 14".
- Material: 1-1/4" square or round 11 gauge tubing; 1-3/4" or 2" heavy duty tubing.
- Steel sheet height: 17" or 20".
Feeder panels
Feeder panel BFP-1
Feature:
- S-shaped bars to prevent livestock getting inside.
- Panel height: 50".
- Material: 2" round high tensile steel.
- Length: 4' to 16' or custom length.
- Fixing: quick pin-latch.
Feeder panel BFP-2
Feature:
- Adjustable horizontal rails allow calves to pass through.
- Panel height: 50".
- Material: 2" round high tensile steel.
- Length: 4' to 16'.
- Vertical bar spacing: 18".
Feeder panel BFP-3
Feature:
- S-shaped bars for locking animals when feeding.
- With kick panel for hay saving.
- Panel height: 50".
- Material: 2" round 16 gauge steel.
- Length: 6' to 16' or custom length.
Feeder panel BFP-4
Feature:
- Panel height: 60".
- Length: 6' to 12'.
- Frame: 2" round 16 gauge steel tubing.
- Slanted bars: 1-1/4" round 16 gauge steel tubing.
- Sheet: 16 gauge.
- Fixing: using long pins.
Feeder panel BFP-5
Feature:
- Panel height: 60".
- Length: 6' to 12'.
- Frame: 2" square 16 gauge steel tubing.
- Slanted bars: 1-2/3" square or round 16 gauge steel tubing.
- Sheet: 16 gauge.
- Fixing: special pin connection.
Feeder panel BFP-6
Feature:
- Panel height: 67".
- Length: 12'.
- Frame: 1-2/3" 16 gauge steel frame and 1.9" 16 gauge rails.
- Sheet: 16 gauge steel in height of 17".
- Chain fixing system for easy installation.
