Galvanized Wire Ropes - Stronger & Corrosion Resistant

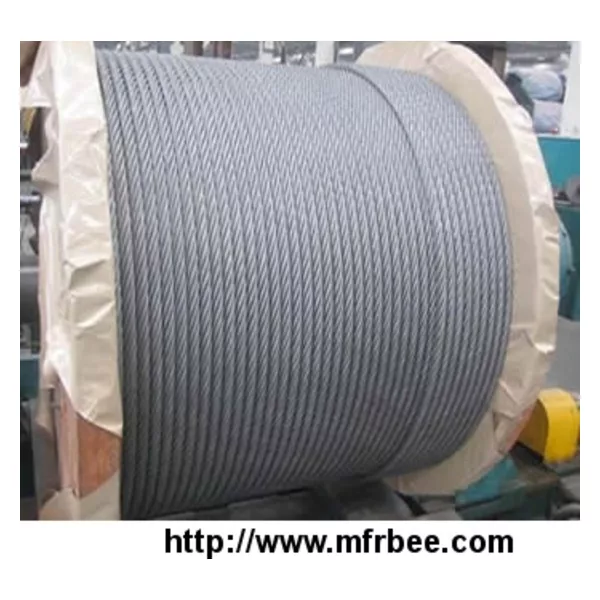

Galvanized steel wire rope

Galvanized steel wire ropes are constructed of galvanized wires which are dipped in the tank containing molten zinc to form a thick layer of zinc coating before the wire is drawing through dies. Then these galvanized wires are drawn to reduce diameter and increase tensile strength. At the same time, zinc coating bonding to steel wires is compressed to form a more excellent layer to protect the steel form corroding.

Feature:

Cheaper than stainless steel wire ropes.
Higher break strength than stainless steel.
Greater fatigue strength.
Excellent corrosion resistant.
Less wear than other materials.
Galvanized coating serves as lubricant to reduce friction.
Remain ductile over long periods of working.
Easier to inspect for corrosion damage.

Application

Winch ropes.
Garage door cable.
Security cable.
Catenary wire rope.
Various general engineering applications.

Details

Standard: DIN, EN, ASTM, BS, JIS, etc.
Diameter: from 0.15mm to 50mm.
T/S: 1570, 1670, 2770, 1870 or 1970Mpa.
Packing: wooden box, bagging or other custom packing.

Construction:

Cross section of galvanized wire rope 6 × 7 with fiber core

GWR 6 × 7 FC

Cross section of galvanized wire rope 7 × 7

GWR 7 × 7 WSC

Cross section of galvanized wire rope 6 × 19 with fiber core

GWR 6 × 19 FC

Cross section of galvanized wire rope 7 × 19

GWR 7 × 19 WSC

Cross section of galvanized wire rope 6 × 19 Seale style with fiber core

GWR 6 × 19 FC & Seale

Cross section of Seale galvanized wire rope 6 × 19 with independent wire rope core

GWR 6 × 19 IWRC & Seale

Cross section of galvanized wire rope 6 × 25 with fiber core

GWR 6 × 25 FC & Filler wire

Cross section of galvanized wire rope 6 × 25 with independent wire rope core

GWR 6 × 25 IWRC & Filler wire

Cross section of galvanized wire rope 6 × 24 with fiber core

GWR 6 × 24 FC

Cross section of galvanized wire rope 6 × 26 with independent wire rope core

GWR 6 × 26 IWRC & WS

Cross section of galvanized wire rope 6 × 29 with fiber core

GWR 6 × 29 FC & Filler wire

Cross section of galvanized wire rope 6 × 29 with independent wire rope core

GWR 6 × 29 IWRC & Filler wire

Cross section of galvanized wire rope 6 × 31 with fiber core

GWR 6 × 31 FC & Seale

Cross section of galvanized wire rope 6 × 31 with independent wire rope core

GWR 6 × 31 IWRC & Seale

Cross section of galvanized wire rope 6 × 36 with fiber core

GWR 6 × 36 FC & Seale

Cross section of galvanized wire rope 6 × 36 with independent wire rope core

GWR 6 × 36 IWRC & Seale

Cross section of galvanized wire rope 6 × 37 with fiber core

GWR 6 × 37 FC & Seale

Cross section of galvanized wire rope 6 × 7 with independent wire rope core

GWR 6 × 37 IWRC & Seale

Cross section of galvanized wire rope 19-7

GWR 19 × 7 WSC

Cross section of galvanized wire rope 6 × 47 with independent wire rope core

GWR 6 × 47 IWRC & WS

Cross section of galvanized wire rope 8 × 26 with independent wire rope core

GWR 8 × 26 IWRC & WS

Cross section of galvanized wire rope 8 × 36 with independent wire rope core

GWR 8 × 36 IWRC & WS

Cross section of fiber infilled galvanized wire rope 6 × 29 with independent wire rope core

GWR 6 × 29 Fiber infilled

Cross section of fiber infilled galvanized wire rope 6 × 36 with independent wire rope core

GWR 6 × 36 Fiber infilled
