Steel Wire Ropes for Spin & Rotation Resistance

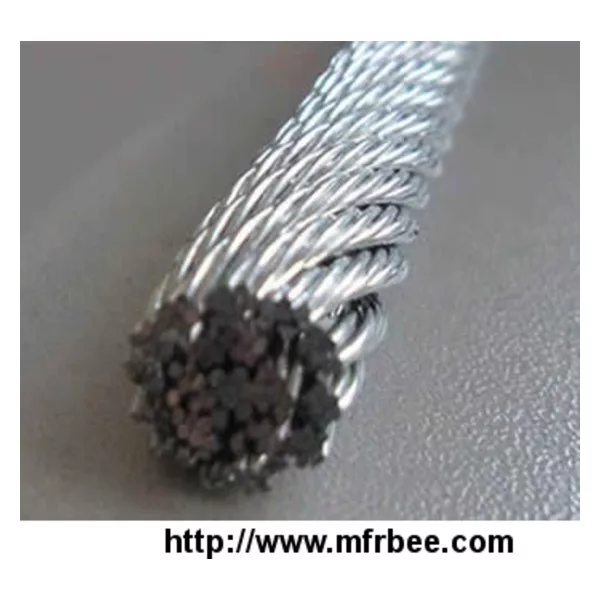

Rotation resistant wire rope is composed of multi-layers of strands for minimizing the tendency to spin and rotation.

Rotation resistant wire rope refers to a series of steel ropes which minimizes the tendency to spin or rotation under load. These wire ropes boast special design - the outer layer is twisted in the reverse direction of inner layers for counteracting torsional forces generated from multi-layers of strands.

To achieve the resistance against the spin and rotation, all wire ropes are composed of at least two layers of strands. In general, more layers a rotation resistant wire rope has, more resistance it will boast. For example, 2-layer ropes is much easier to spin and rotate than 3-layer ones. Meanwhile, if one end of free rotation is allowed, 2-layer rope can only develop 55% to 75% of its breaking strength comparing with 95% to 100% of 3-layer ropes.

According to characteristics of rotation resistant wire ropes, three categories are supplied by our company to suit your different needs:

Spin resistant 2 layers & 8 to 10 outer strands

Rotation resistant 2 layers & 11 to 13 outer strands

Non-rotating 3 layers & 14 or more outer strands

Normally, 2-layer spin and rotation resistant wire ropes can meet your needs of low and medium rotation resistance.

The 3-layer rope with more outer strands is capable to distribute more radial pressure onto inner layers and ideal for larger mobile such as all tower cranes.

Structure:

RWR-187 WSC

RWR-197 WSC

RWR-C197C

RWR-1919 S

RWR-1919 C

RWR-327WSC

RWR-327C

RWR-357WSC

RWR-357C

RWR-357P

RWR-357CP

RWR-1925F

RWR-28

RWR-28P

RWR-29

RWR-29P

Note:

• Wire ropes with 8 to 10 strands & 2-layer constructions without reversely twisted inner strands have very similar appearance to rotation resistant wire ropes, but they are not.
• Rotation resistant wire ropes are considered to be less stable needing to be handled and installed with great care. They must be taken to avoid high loads with small diameter sheaves.
• To avoid lay disturbances of the outer strands, it is recommended to ensure ends of the rope are seizes tightly, welded or brazed.
