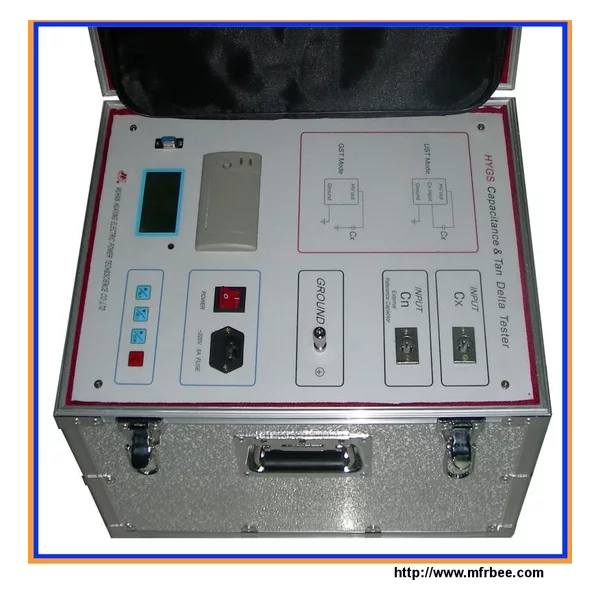

GDGS Tan Delta Tester
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Wooden Case
- Delivery
- 15 Days
Specifications
1.1 Application
GDGS automatic tan delta tester is applied to measure the dielectric loss and capacitor value of insulation materials in high voltage power equipment. The
non-power frequency voltage source is integrated in the tester to avoid power frequency interference. That make the tester has a good performance in measurement precision.
1.2Technique index
1 Measurement error:
Capacitor value: 1%RDG+5pf
Tangent delta: 1%RDG+0.04%
2 Output voltage：AC 0.5KV~10KV
3 Testing voltage setting resolution: 0.5KV
4 Maximum output capacity: 200mA
5 Testing frequency: 45Hz/55Hz
6 Test mode: fully automatic
7. Power supply: AC220V±10% 50Hz/60Hz
8 Environment temperature: 0-50°C
9 Humidity: ≤85%RH
10 Weight:40KG
