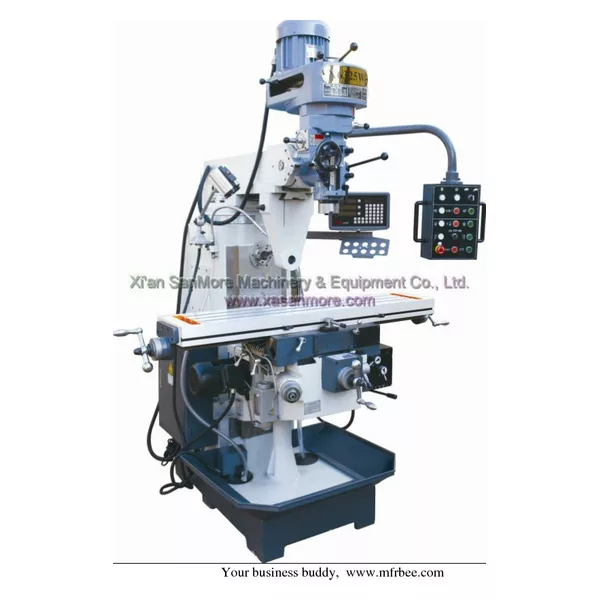

X6235WA Vertical and Horizontal Turret Milling Machine

Packaging
Wooden case or negotiation
Delivery
180 Days

X6235WA Vertical and Horizontal Turret Milling Machine

Main specifications: X6235WA
Table size (mm): 1270*260
Table travel (mm): 700*280
Overall dimension (mm): 1655*1650*2300
Spindle taper (mm): NT30/R8/NT40)
Spindle drilling diameter(mm): 15
Spindle quill travel(mm): 127
Spindle speeds:
Low (r/min): 80, 135,210, 325, 660, 1110,1750, 2720
High(r/min): 160,270 420, 650, 1320, 2220, 3500,5400
Distance from spindle to table surface(mm): 100-490
Left right: +/-90 degree
Before behind: +/-45 degree
Voltage: 380V(changeable as required)
Frequency: 50Hz
Motor: 3Hp
N.W/G.W: 1650/1750Kg

Note: Due to restrictions on parameter table on this B2B platform, so we cannot provide clear parameter table. But if you want to know more about our products, please contact frankliang2008 !
