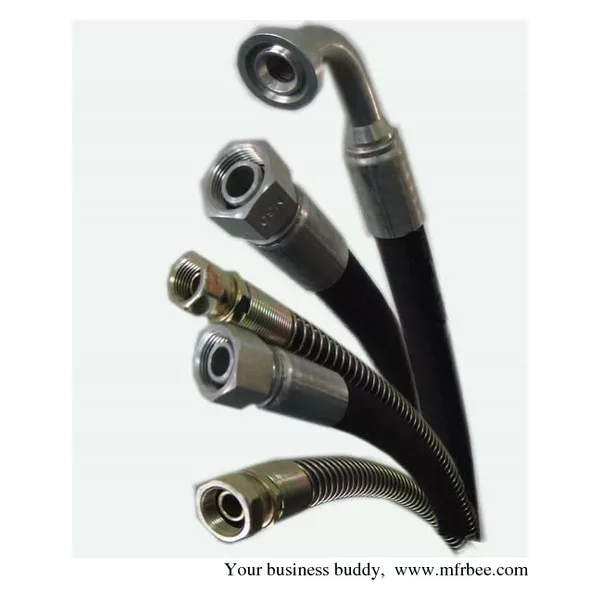

Details of Spiral Wire Hydraulic Hose on Specifications
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Our company can supply spiral wire hydraulic hose including four spiral wire hydraulic hose, multi-spiral hydraulic hose and spiral wire reinforced hydraulic hose. In the following is the detailed information of each product. You can see the difference between wire braid hydraulic hose and spiral wire hydraulic hose.
Our spiral wire hydraulic hose usually consists of three parts including seamless oil resistant neoprene rubber tube, spiral plies of high tensile steel wire, and synthetic rubber which has oil, abrasion and weather resistance. The temperature range is -40°C to +121°C (-40° to 250°F).
Four Spiral Wire Hydraulic Hose
 |
| Four spiral wire hydraulic hose |
It is an extremely flexible hose designed to operate at high working pressures and finds its applications on modern construction, marine, mining, and forestry equipment. This hose is available in long lengths up to 131 feet.
Nominal specifications:
| Size code | I.D. | O.D. | WP (psi) | Burst Pressure | Bend radius | Weight (lbs./100ft) | |||
| in | mm | in | mm | psi | in | mm | |||
| 6 | 3/8 | 9.5 | 0.84 | 21.34 | 6450 | 25800 | 7.0 | 178 | 53 |
| 8 | 1/2 | 12.7 | 0.96 | 24.38 | 6000 | 27550 | 9.0 | 228 | 60 |
| 12 | 3/4 | 19.0 | 1.26 | 32.00 | 6000 | 25370 | 11.0 | 279 | 101 |
| 16 | 1 | 25.4 | 1.50 | 38.10 | 5500 | 25370 | 13.5 | 342 | 137 |
| 20 | 1-1/4 | 31.8 | 1.78 | 45.21 | 5000 | 20300 | 18.0 | 457 | 165 |
Four layer wire spiral reinforced hydraulic hose
 |
| Four layer wire spiral reinforced hydraulic hose |
The tube is black and oil resistant synthetic rubber.
The reinforcement layer consists of four layers of spirally wrapped high tensile steel wire that separated by synthetic rubber fabric layer.
The cover is synthetic rubber. It is weather, oil, fuel, ozone and abrasion-resistant.
Application and advantages:
With extraordinary flexibility, excellent bend radius properties and exceptional impulse life, it can be used in petroleum-based hydraulic fluids of very high pressure and tight bends. It can withstand the temperature of +125°C.
Maximum operating temperature: 257° F (125° C).
| Size code | I.D. | O.D. | WP (psi) | Bend radius | Weight (lbs./100ft) | |||
| in | mm | in | mm | in | mm | |||
| 6 | 3/8 | 9.5 | 0.80 | 20.3 | 4000 | 5.0 | 127 | 44 |
| 8 | 1/2 | 12.7 | 0.94 | 23.8 | 4000 | 7.0 | 178 | 55 |
| 12 | 3/4 | 19.0 | 1.21 | 30.7 | 4000 | 9.5 | 241 | 82 |
| 16 | 1 | 25.4 | 1.50 | 38.0 | 4000 | 12.0 | 305 | 128 |
| 20 | 1-1/4 | 31.8 | 1.85 | 47.0 | 3000 | 16.5 | 419 | 176 |
| 24 | 1-1/2 | 38.1 | 2.10 | 53.5 | 2500 | 20.0 | 508 | 218 |
| 32 | 2 | 50.8 | 2.62 | 66.7 | 2500 | 25.0 | 635 | 285 |
Multi-spiral hose
 |
| Multi-spiral hydraulic hose with reinforcement layer |
This multi-spiral hose is used in severe pressure applications where high working pressures and superior resistance to impulsion are required. It is commonly used on heavy mobile equipment.
Reinforcement: six or more spiral plies of high tensile steel wire.
Nominal specifications:
| Size code | I.D. | O.D. | WP (psi) | Burst Pressure | Bend radius | Weight (lbs./100ft) | |||
| in | mm | in | mm | psi | in | mm | |||
| 12 | 3/4 | 19.0 | 1.26 | 32.0 | 5000 | 20000 | 9.5 | 241 | 113 |
| 16 | 1 | 25.4 | 1.52 | 38.6 | 5000 | 20000 | 12.0 | 305 | 135 |
| 20 | 1-1/4 | 31.8 | 1.96 | 49.7 | 5000 | 20000 | 16.5 | 419 | 241 |
| 24 | 1-1/2 | 38.1 | 2.26 | 57.4 | 5000 | 20000 | 20.0 | 508 | 321 |
| 32 | 2 | 50.8 | 2.79 | 70.8 | 5000 | 20000 | 25.0 | 635 | 444 |
Wire spiral hydraulic hose used for high pressure environment
Multi-spiral wire reinforced hydraulic hose
