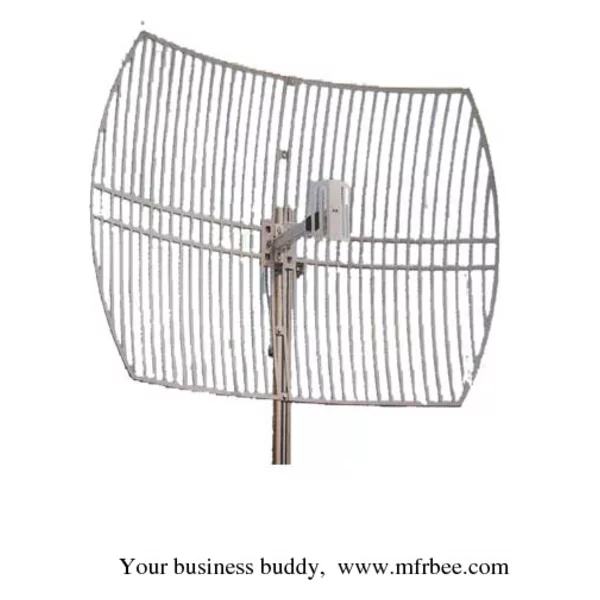

2.4GHz WIFI 24dBi Grid Antenna
Product Quick Detail
- CN
- Foshan
- Packaging
- 5pcs each carton
- Delivery
- 5 days
Specifications
| Ⅰ●Electrical Specifications | |
| Model | AC-D24G24 |
| Frequency Range | 2400-2483 MHz |
| Band width | 83 MHz |
| Gain | 24 dBi |
| F/B Ratio | ≥30 dB |
| Horizontal Beam width | 10° |
| Vertical Beam width | 14° |
| V.S.W.R | ≤1.5 |
| Lightning Protection | DC Ground |
| Radiation | Direction |
| Polarization | Vertical |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Operating Temperature | -40℃ to+70℃ |
| Connector | N female |
| Cable Type | LMR400 |
| Cable Length | 30 CM |
| Mount way | Pole |
| Π●Mechanical Specifications | |
| Antenna Dimension | 600*900 MM |
| Weight | 2.5 KG |
| Mounting Mast Diameter | Mast Diameter-mm Ø30~Ø50mm |
| Rated Wind Velocity | 60m/s |
- Country: China (Mainland)
- Business Type:
- Market:worldwide
- Founded Year:2001
- Address:#12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui
- Contact:May Wu
