Wire Rope Mesh

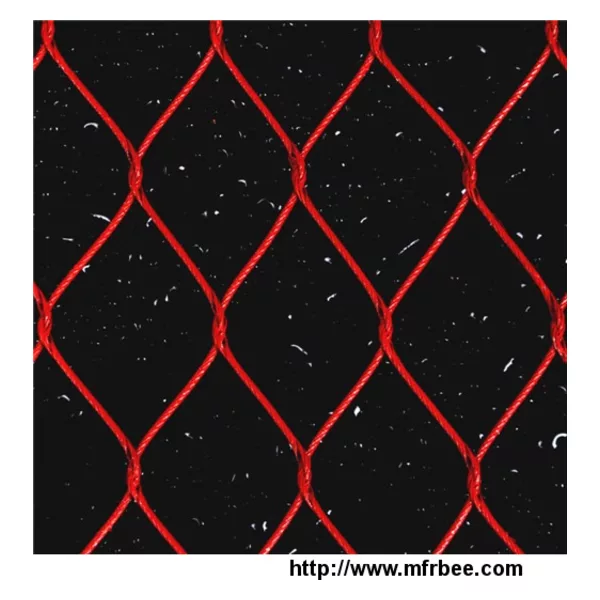

Hand-woven Stainless Steel Wire Rope Mesh for decoration

1.Introduction of Hand-woven Stainless Steel Wire Rope Mesh for decoration

The Flexible Stainless Steel Mesh material is used high quality stainless steel wire cable,

the stainless steel grade includes type 304, type 304 L, type 316, type 316L.

The Flexible Stainless Steel Wire Mesh is rhombus mesh, has excellent flexible performance,

virtually indestructible, most impacting-resistant and breaking resistant force,

most resisting rain, snow, hurricane.

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out.

No matter how large, how small, or how cunning you specimens are, we assure their

complete security.

2.Specification of Hand-woven Stainless Steel Wire Rope Mesh for decoration

1) Knotted Mesh

Cable

Diameter Mesh Opening Size Norminal

Break

Inch mm Inch mm Ibs

1/8 3.0 4.75x4.75,4x4,3.55x3.55,3x3,2x2 120x120,102x102,90x90,76x76,51x51 1600

3/32 2.4 4x4,3.55x3.55,3x3,2.4x2.4,2x2 102x102,90x90,76x76,51x51 920

5/64 2.0 3x3,2.4x2.4,2x2,1-1/2x1-1/2 76x76,60x60,51x51,38x38 676

1/16 1.6 3x3,2.4x2.4,2x2,1-1/2x1-1/2,1.2x1.2,1.0x1.0 76x76,60x60,51x51,38x38,

30x30,25.4x25.4 480

3/64 1.2 1-1/2x1-1/2,1.2x1.2,1.0x1.0,4/5x4/5 38x38,30x30,25.4x25.,20x20 270

2) Ferruled Mesh

Wire Rope Cable Diameter Mesh Opening Norminal

Break

Inch mm mm Kn

7x19 1/8 3.2 150x260,120x208,100x173,90x156 7.38

7x7 3/32 2.4 150x260,120x208,100x173,90x156,80x139 4.18

7x7 5/64 2.0 150x260,120x208,100x173,90x156,80x139x70x121,60x104 3.17

7x7 1/16 1.6 120x208,100x173,90x156,80x139,70x121,60x104,51x87 2.17

7x7 3/64 1.2 80x139,60x104,50x87,40x69 1.22

3)Epoxy Coated

4)Fittings

3. Application of Hand-woven Stainless Steel Wire Rope Mesh

1)For Decoration

2)For Security

3)For Green Wall

4)For Zoo Mesh

5)For Manhole Cover Protection

4.Packing of Hand-woven Stainless Steel Wire Rope Mesh

Flexible Stainless Steel Cable Mesh

Material: SS 304,304L,316 ,316L

Structure:7x7,7x19

Weaving Type:Ferruled ,Knotted

Wire Dia:1.2-4mm

Mesh Width:24mm-300mm

QC:ISO,Hongkong TS test

MOQ: 1 square meter

Supply Ability :200 square meter

Packing:Less than 50 kgs,for Carton Box;

More than 50 kgs ,for Wooden Box
