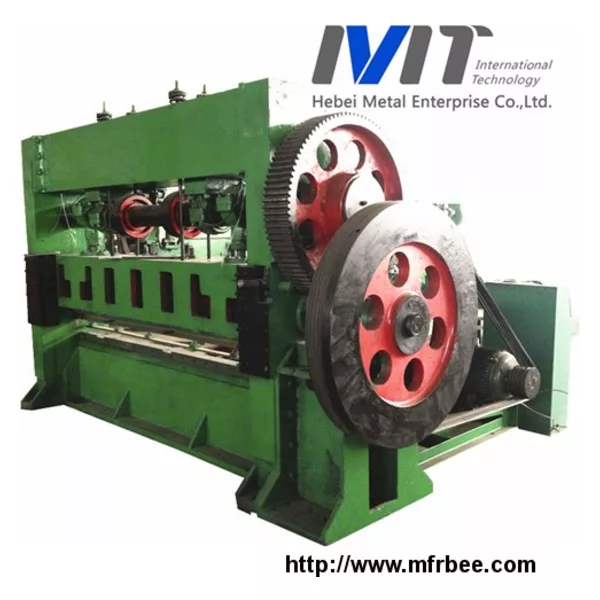

Expanded Metal Machine
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Less than 50 kgs,for Carton Box; More than 50 kgs ,for Wooden Box
- Delivery
- 15 Days
Specifications
Expanded Metal Machine for sale
FOB Price: US $ 9,000 - 50,000 / Set
Min.Order Quantity: 1 Set/Sets as request
Supply Ability: 4 Set/Sets per Month as request
Port: Tianjin
Payment Terms: L/C,D/P,T/T,Western Union
1.Expanded Metal Machine are used for punching all kinds of expand plate mesh in construction.
common hardware,window and door,machine protecting etc.
Feed mechanism passes the chain link by the main engine directcy. the movement accurate is reliable
The times of feed mechanism punching shear is started from 0 it can shear in free scope.
2.Steel Expanded Metal machine types:
| Type | MT25-6.3 | MT25-16 | MT25-25 | MT25-63 | MT25-160 |
| Max.Thickness (mm) | 1 | 1 | 1.5 | 2.5 | 8 |
| Punching Width (mm) | 500 | 1000 | 1250 | 2000 | 2500 |
| Slide plate trip Times | 180 | 150 | 150 | 70 | 45 |
| Distance offeeding (mm) | 0-1.15 | 0-1.2 | 0-1.2 | 0-7 | 0-13 |
| Max.Lenght of Mesh (mm) | 20 | 25 | 30 | 100 | 200 |
| Motor (kw) | 2.2 | 3 | 4 | 11 | 22 |
| Total Weight (T) | 0.95 | 2 | 3 | 10 | 20 |
| Measurement (m) | 9.5*5.7*1.78 | 1.8*1.32*1.55 | 1.94*1.6*2.01 | 2.4*3.5*2.3 | 4.5*2.8*3.0 |
