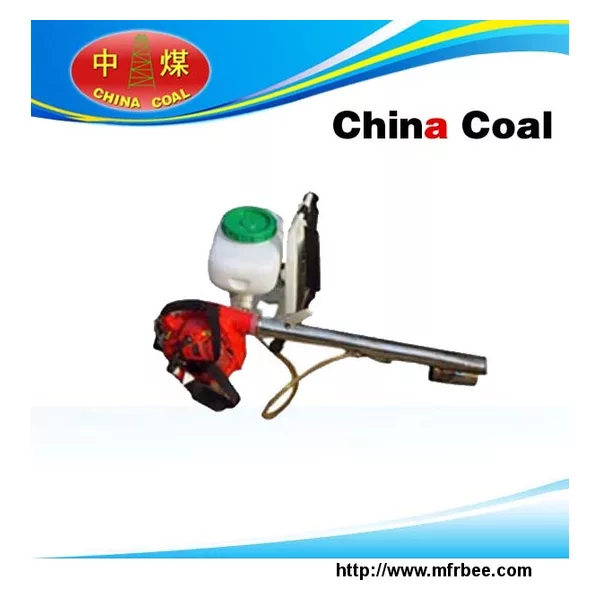

Blowing snow melting ice machine

Blowing snow melting ice machine Application

　　Blowing snow melting ice machine designed for railway turnouts winter blowing snow ice melting and design of railway essential products, the product is based on the internal combustion as the power source, the specific blowing snow, melting ice and other functions. 　　Blowing snow melting ice machines use two-stroke gasoline engine driven centrifugal fan produces high pressure air, to blow air flow between the floating snow falling turnouts. In addition, the air flow through the air duct decompression leads, lights the fire is co-produced with high-temperature air can be adhered to the turnout on the ice to melt, so as to clear the snow and ice melting purposes.

Blowing snow melting ice machine Parameters

Dimensions (mm) 340 * 355 * 540

Weight (kg) 9.5

Fuel tank capacity (l) 7m) is greater than or equal to 12

Impeller speed (r / min) 5800

Motive power: horizontal bar, air-cooled, two-stroke gasoline engine

Calibration ratio (kw / r / min) 1.18/5800

Blowing snow melting ice machine Fuel consumption (g / kw / min) is less than 530 use of fuel (mixed oil)

Gasoline and oil volume mixing ratio 20:1

Ignition: Electronic ignition

Starting method: Recoil rope from the back

Shutdown mode: Full oil closed
