Cone valve

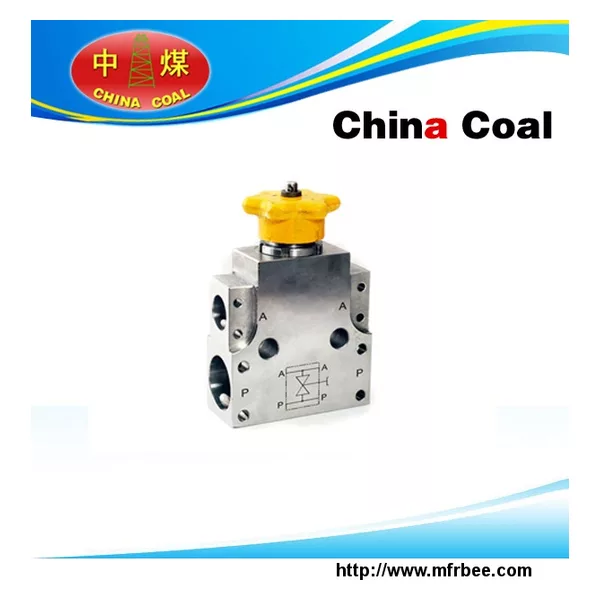

FJZ400/31.5 cone valve

FJZ400/31.5 cone valve product application

In the main liquid inlet to the valve installed valve pipeline, and its role is to ensure that the hydraulic circuit opening or closing a liquid. Fault finding and local repair work.chinacoal05

FJZ400/31.5 cone valve main parameter

JZ400/31.5 cone valve rated flow rated working pressure: 400L/min:31.5MPa

Dimensions: 178 x 100 x 65 weight: 4.3kg external size: KJ19/KJ31.5D

FJZ400/31.5 cone valve type valve material carbon steel model

FJZ400/31.5 cone valve type valve material carbon steel model

Product name cone valve nominal pressure of 31.5 (MPa)

Type (channel) three way connection joint

Parts and accessories for driving hydraulic control

The main material carbon steel

FJZ400/31.5 cone valve product feature

FJZ400/31.5 cone valve for manual conical sealing two different diameter of the four valve. Large diameter hole and the main pressure hose, pipe connections and differences of small diameter hole pipe connection. The POM cone valve pad and steel seat sealing seatsealing pair.

Mainly applicable to support the main hydraulic control valve is arranged between the liquid inlet to the valve, according to the need to turn off or switch on the liquid path. FJZ400/31.5 cone valve is characterized in manual conical sealing two different diameter four way valve.

FJZ400/31.5 cone valve for manual conical sealing two different diameter of the four valve, the POM cone valve pad and the valveseat conical steel seal to pay, to maintain good contact, not on,connected with the control function of cut-off liquid road.
