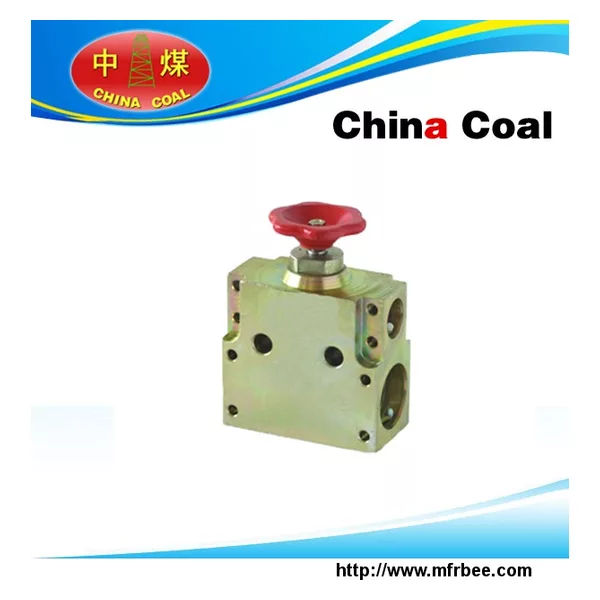

Cut-off valve

FJP400/31.5cut-off valve main technology parameter

Nominal flow rate: 400l/min

Nominal pressure: 31.5Mpa

Working medium: emulsion

FJP400/31.5cut-off valve product introdution

FJP400/31.5 cut-off valve for the hydraulic pipeline system as the working valve cut-off circuit breaker in the frame, is connected between the main road and valve operation, when the overhaul antiframe with the valve will separate the bracket and the trunk road;

After cleaning the parts assembly, impurities inside the product is less than 10mg;

Product assembly, motion of flexible operation, no blocking phenomenon, the machine is not due to mechanical damage;chinacoal05

Product storage and transportation should be rustproof dustproof measures.

g�<sH�� �� style="mso-spacerun:'yes'; font-family:'Times New Roman'; mso-fareast-font-family:宋体; font-size:10.5000pt; mso-font-kerning:1.0000pt; " >

Product assembly, motion of flexible operation, no blocking phenomenon, the machine is not due to mechanical damage;

Product storage and transportation should be rustproof dustproof measures;

Bidirectional lock comprises a valve body, opened in the valvechamber of the valve body, and the opening in the valve body and the valve cavity is communicated with the inlet, a liquid outlet; the valvechamber for level throughout the cavity body; in the middle of the valve cavity is provided with a seal sliding section "two-way push rodshaped; the ten" the bidirectional top pole of the left, right top rod is respectively arranged in the valve cavity extends to the left, the rightvalve sleeve, on the left, the right valve sleeve are respectively provided with a valve seat sealing connection open; a plug cavity in the valve cavity in the left, right port are respectively threaded, cavityblock in the are respectively provided with a valve core and a return spring; the inlet, a liquid outlet is divided into left and right, a liquid outlet inlet, liquid outlet; the valve cavity left, right into the liquid outletwhich are respectively connected with a flow channel and thecorresponding left, the right side is communicated with the valve seat;the utility model has the advantages of that type the valve body is more convenient for disassembly and assembly of the valve, the valve body; the valve seat are respectively arranged in the valve cover,plug the cavity plate, the structure is simple and compact.
