Product Introduction

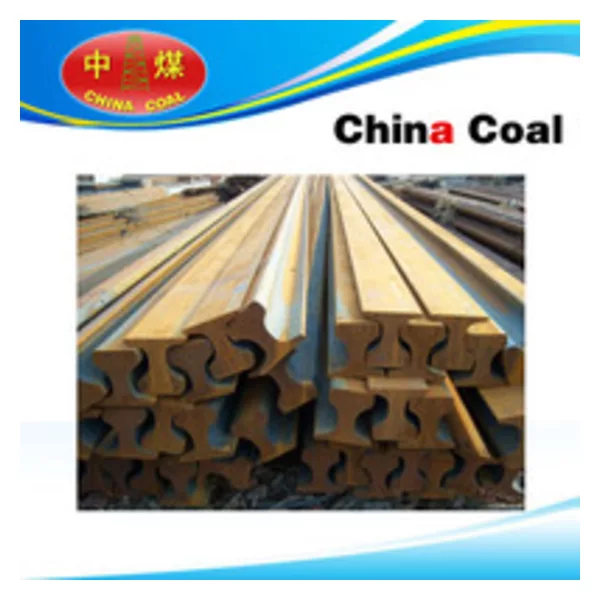

GB light crane rail15kg track rail light
Light Rail 15kg/m
Standard:GB11264-89
Material:Q235,Q235B,50Q,55Q
Weight:15.20kg/m
Length:6m,8m,9m,10m,12m,etc
Products with the features of high level purity, precise chemical composition control, high dimensional accuracy and excellent surface quality,the products are mainly used in railway, tunnel, crane,etc.
Main standards: Q/YY001-2008,Q/YYG002-2008,
GB2585-81,GB11264-89,GB2585-2007,
YB222-63,YB/T5055-93,TB/T2344-93,TB/T2635-2004,
Main grades: Q235,Q235B,50Q,55Q
45Mn,50Mn,U71Mn,U71,U75V,U75VM,PG4
BS700,BS900A,UIC900A,UIC1100,
EN grades, AREMA grades chinacoal05
Main Parameter
THE LIST OF China Coal Steel | ||||||
Name of Commodity | Specificaton | Materials (Steel Grade) | Standard of Products | Theory Weight (kgs/M) | Length of Dimension (M) | Packed In Bundle With Iron Wire (pcs/bundle) |
Light Rail | 4kgs/m | Q235 | Q/YYG001-2008 | 4kgs/m | 6,8,9,10 | 75 |
8kgs/m | Q235 | Q/YYG001-2008 | 8.42kgs/m | 55 | ||
12kgs/m | Q235 | GB11264-89 | 12.2kgs/m | 36 | ||
15kgs/m | Q235/55Q/50Q | GB11264-89 | 15.2kgs/m | 28 | ||
18kgs/m | Q235/55Q/50Q | YB222-63 | 18.06kgs/m | 21 | ||
22kgs/m | Q235/55Q/50Q | GB11264-89 | 22.3kgs/m | 21 | ||
24kgs/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kgs/m | 21 | ||
30kgs/m | Q235/55Q/50Q | GB11264-89 | 30.1kgs/m | 15 |
