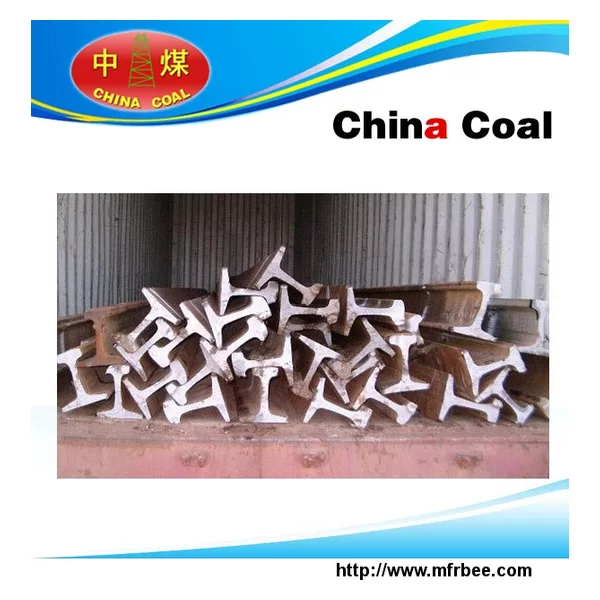

Product Introduction
1.SIZE: QU70,QU80,QU100,QU120
2.MATERIAL: U71Mn
3.STANDARD: YB/T5055-93 STANDARD
4.LENGTH: 12M chinacoal05
Main Parameter
Mode |
size mm
AXBXCXD |
weight(kg/m) | length(m) |
QU70 | 120x120x70x28 | 52.80 | 9/9.5/1010.5/11/11.512/12..5m |
QU80 | 130x130x80x32 | 63.69 | 9/9.5/1010.5/11/11.512/12..5m |
QU100 | 150x150x100x38 | 88.96 | 9/9.5/1010.5/11/11.512/12..5m |
QU120 | 170x170x120x44 | 118.10 | 9/9.5/1010.5/11/11.512/12..5m |
Overhead crane rail,gantry crane rail also can be called crane track, steel rail track, etc. It is a metal groove or ridge that holds, guides, and reduces friction for a moving device and a steel-striped line used for a running trolley. The theoretical weight of China\'s ...
Overhead crane rail also can be called crane track, steel rail track, etc. It is a metal groove or ridge that holds, guides, and reduces friction for a moving device and a steel-striped line used for a running trolley. The theoretical weight of China\'s standard crane track ...
The weight of qu100 rail is 88.96kg/m and the length is 12m/pc.The material of qu100 rail is U71Mn.Qu100 rail is one of crane rail. Zongxiangis a company that has professional experience in steel rail and provides good sevices to customer. It is important that our steel rails ...
Type: 60kg rail Material: U71Mn/U71MnX/U75VX Weight: 60.64KG/M Length: 12.5-25m Standard: GB2585-2007 The company has been managing and selling steel products for more than 20 years, the company is not only engaged in international standard steel rails, various types of steel ...
Type: QU100 crane steel rail Material: U71Mn Weight: 88.96KG/M Length: 12m Standard: YB/T5055-93 The company now operates all types of national standards rail and other national standards rail, as well as rail accessories, fishtail plate and road nails. Our products are exported ...
Type: QU80 crane steel rails Material: U71Mn Weight: 63.69KG/M Length: 12m Standard: YB/T5055-93 The lifting rail material of model QU80 is U71Mn, and the single Weight is Weight: 63.69KG/M. The length is 12m. Thecrane rail of QU80 is our company\'s main type of steel rail, and ...
Crane Rail\'s Model:QU70,QU80,QU100,QU120, Material U71Mn. Cane Rail is use for for crane and trolley track,also known as crane rails、crane rail etc. Compared with the railway\'s heavy rail crane rail height is low and head width thick waist size is bigger.Crane rail is on ...
Rail press also called welding rail press, welding steel rail fixing device,steel beam rail press, welding clamp, but no matter what do you call, its role is only a kind of fixed rail pressure.Usually welded on the steel i-beam, but sometimes also can be used in steel plates ...
Rail press can be divided into WJK, SWJK, HWJK series TG38, TG43, TG50, TG60, QU70, QU80, QU100, QU120 ,which consists of base, cover, wear of shaw, spring flat washer. With two kinds materials: one kind is half cast steel: cover for nodular cast iron, the base for cast steel. ...
Crane RailKnowledge Crane rail also calledlifting rails,its height is low, the head is wide and waist thick dimension is bigger, only ask to examine chemical composition and tensile strength. Used for laying cranes and trolley tracks. The production plant has angang and ...
