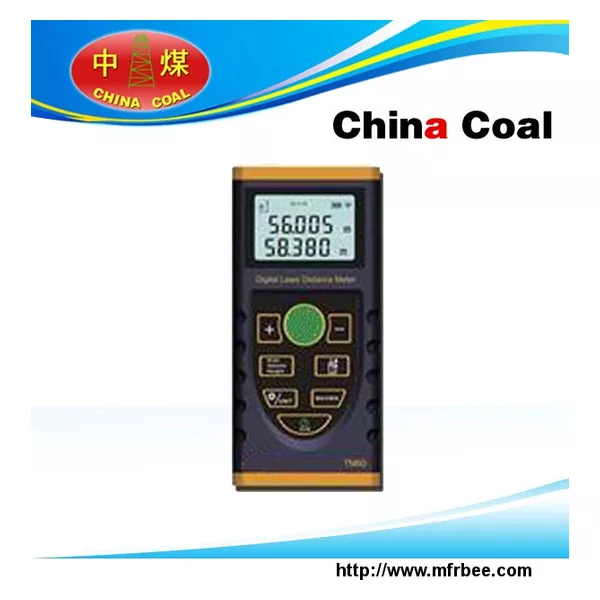

TM60Laser rangefinder

TM60 Laser rangefinder product introduction

TM60Laser rangefinder used in housing area, volume, flat area measurement, the object length and height, slope distance measurements. Simple, accurate to the millimeter.chinacoal05

TM60Laser rangefinder feature & application

Accurate to the millimeter laser phase measurement

Backlit display, capable of night and low light microscope work

Not operating cases, 20 seconds laser automatic shutdown, 5 minutes from the shutdown, to extend battery life

Sealed membrane keyboards, splash dust is easy to clean

Open, shut down, data deletion, a key to achieve

Press the start laser measurement is pressed again, long press can be measured continuously

Distance and area measurement conversion.

Minimum/maximum value measurement

According to the measuring loop mirror to switch from the measurement datum

Add, subtract operation transformation portable resistance to hang on the rope

The extension of the slit corner reference design

TM60Laser rangefinder technical parameter

name TM60

measuring range* 0.20 - 60m

resolution0.001

accuracy* +/-1.5mm

measurement speed* 0.5sec

laser type 635nm,Class2,<1mW

power 2 x AA Batteries

power life Up to 10000 Measures

dimension 121mm x 51mm x 30mm

operating environment temperature 0~40℃

storage temperature -10℃~60℃

Auto-off function (in the absence of any operating conditions)

Laser off 30seconds

Device off 180seconds
