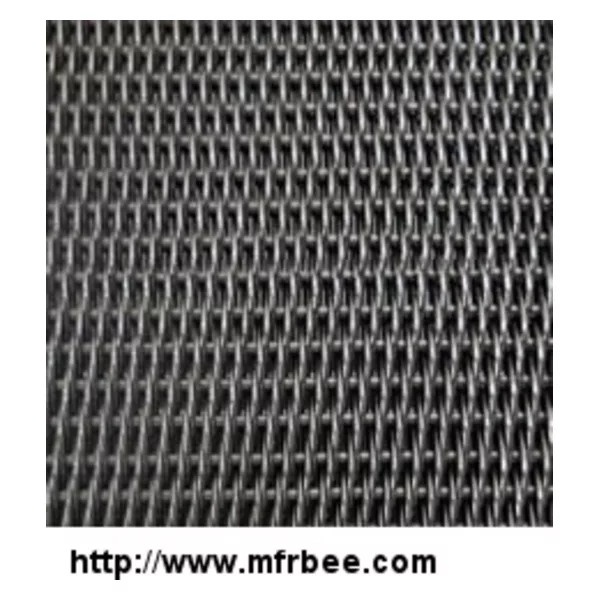

Reverse Dutch Woven Wire Mesh - Durable and Long Lasting

Reverse dutch woven wire mesh is another product specially designed for filtering. It is mainly made of stainless steel wire, which is chemical resistance, alkali and acid resistance, rust and corrosion resistance. It can ensure the durable filtering performance during the usage. The reverse dutch weave can also be used in brass wire, which is also has chemical stability for filtering.

Using two different sizes of wire diameter, the stainless steel wire or brass wire is woven into reverse dutch woven wire mesh. Which is widely used as filter disc or other filtration products in petrochemical, aerospace and other field.

Reverse dutch woven wire mesh is similar to the dutch weave woven wire mesh.

• Same material: stainless steel wire or brass wire.
• Two sizes of wire diameter: finer wire in one direction and coarser wire in the other direction.
• Weaving type: plain weave and twill weave.

Reverse dutch weave woven wire mesh is different from dutch weave woven wire mesh.

Wire direction.

• Dutch weave woven wire mesh. The coarser wire in the warp direction and the finer wire in the weft direction.
• Reverse dutch woven wire mesh. The coarser wire in the weft direction and the finer wire in the warp direction.

Plain dutch weave woven wire mesh.

Plain reverse dutch weave woven wire mesh.

Twill dutch weave woven wire mesh.

Twill reverse dutch weave woven wire mesh.

Standard specifications
48 × 10 mesh RDPW 400 nominal micron.
72 × 15 mesh RDTW 250 nominal micron.
132 × 17 mesh RDTW 200 nominal micron.
152 × 30 mesh RDTW 115 nominal micron.
260 × 40 mesh RDTW 75 nominal micron.

Features

• Smooth surface.
• High hardness.
• Zero aperture.
• Chemical resistance.
• Acid and alkali resistance.
• Rust and corrosion resistance.
• High tensile strength than the plain weave woven wire mesh.
• Outstanding filtration performance.

Applications
Reverse dutch woven wire mesh is widely used for filtering in various industries.

• Aerospace.
• Petroleum.
• Chemical industry.
• Chemical fiber.
• Machinery.
• Plastic products.
• Conveying.
• Other industries.

Package

• Waterproof brown paper for moisture resistance.
• Plastic paper for dust resistance.
• Wooden box or pallet for convenient to load and transport.

Reverse dutch woven wire mesh in waterproof brown paper package.

Reverse woven wire mesh in wooden box package.
