MCH-6 High Pressure Breathing Air Compressor
Product Quick Detail
- China
- Breathing Air Compressor
- Packaging
- according to your requirkments
- Delivery
- 7 Days
Specifications

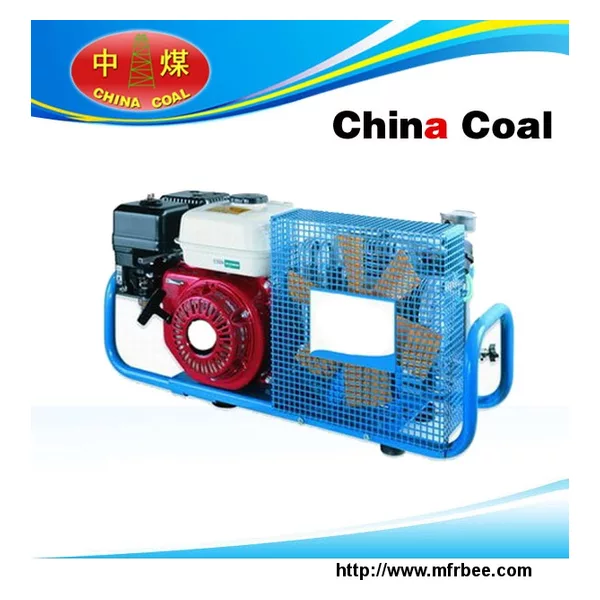

MCH-6 High Pressure Breathing Air Compressor
Product Introduction chinacoal05
MCH 6 series low noise portable pressure air compressor is the smallest, lightest portable breathing air compressor in the whole industry.
The MCH6 series only 39 KG, can easily put it in the trunk of the car , carry to use the site.
It can be used in fire, scuba diving, shooting , emergency rescue, chemical, oil field and other fields.
Convenient to move, easy operation, and the silent high pressure air compression manufacturing meet EN 12021 international breathing compressed air standard.
The oil and contaminants in the compressed air are removed by filters and oil-moisture separators in the duration of compression,so the outlet air is pure and odorless.It is safe and reliable breathing air supply machine
Main Parameter
| Charging rate: | 100 L/min; 6 m³/h; 3.5 CFM |
| Filling time cylinder: |
6.8L 0-300bar/20.4 min
12L 0-200bar/24 min |
| Working pressure: | 225 Bar / 3300 Psi; 300 Bar - 4300 Psi |
| Full load Amp: | 6.7A(400V-50/60Hz) |
| Driven by: | Three-phase electric motor 380V |
| Power: | 3Kw |
| Dimensions: | height 35 cm , width 65 cm ,depth 39 cm |
| Dry weight: | 39 Kg / 85 lbs |
| Noise (ISO 3746): | 83 dB |
| Number of stages: | 4 |
| Number of cylinders: | 4 |
| Lubricating oil capacity: | 300 cc (0.3L) / 10 FL.OZ |
| Lubricant: | CE 750 |
| Oil/mosture separator: | After last stage |
| Filtration: | Filter cartridge activated carbon and molecular sieve |
| Suction filter: | 2 micron paper - 25 micron polyester |
| Breathing air: | EN 12021 CGA E |
