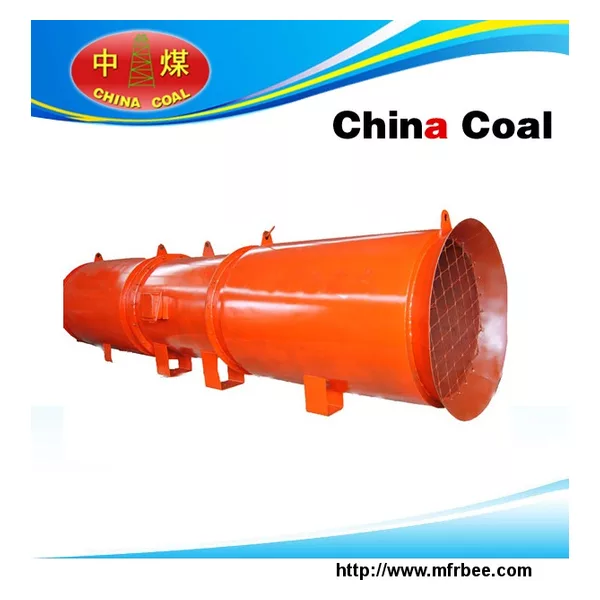

JK.DJK Series Ventilation Fans

JK.DJK Series Ventilation Fans

Introduction

K, DK series of mine ventilator is designed based on energy metallurgy, nonferrous metals, gold, chemicals, building materials and other types of non-coal mines nuclear industry needs and design, can be used as the main fan and auxiliary fan can be installed on the surface, can also be installed in the underground, suitable for many fans joint operation is a multi-series-parallel multi-stage fan ventilation systems at all levels of local stations stations stations ideal for fans, but also for large-scale workshops, tunnels, ventilation air defense projects for other occasions gas.chinacoal05

Characteristic

1, using twisted airfoil blades, pneumatic, high efficiency, energy-saving effect is extremely significant.

2, the performance and specifications complete, resistance to air flow with various types of ventilation network good match, you can maintain long-term efficient operation.

3, has a steady flow loop device characteristic curve no hump, no surge danger at any resistance state are safe and stable operation, and is suitable for multi-turbine combined operation.

4, the use of the motor and impeller directly linked structure, the overall stable, easy installation, easy maintenance, low resistance device Bureau.

5, compact structure, good moisture resistance. Fans main use of steel, structural steel welding, material for the steel blade, hollow, blade and machine high strength, anti-mine blast shockwave ability, can be mounted on the surface, also suitable for installation in underground, particularly suitable as a multi-level machine station ventilation system stations fan.

6, can reverse the anti-air, anti-air ratio greater than 60%, no anti-duct construction.

7, the blade angle adjustable, according to changes in mine production, at any time adjust the fan status.

8, civil works is very small, you can save a lot of investments.

9, the noise is low.

Performance indicators

(1)Series number ：№7～№26；

(2)Series of speed：1450.980.730 r/min；

(3)Air volume range：2.0～164.2m3/s；

(4)RangeofTotalPressure：38～3819pa ；

(5)Power range：1.1～500kW；

(6)The fan efficiency: K type single-stage eta = 94% of total pressure efficiency，

(7)Running noise：LA≤85dB(A).
