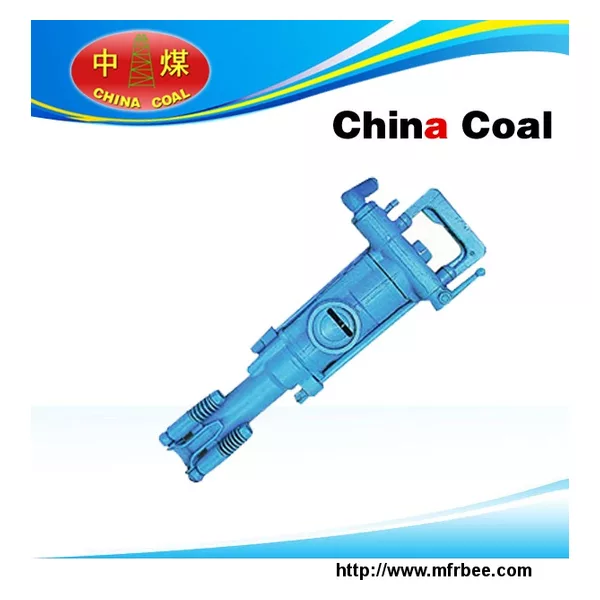

7655 Rock Drill
Product Quick Detail
- Place Of Origin
- China
- Packaging
- according to your requirkments
- Delivery
- 7 Days
Specifications
7655 Rock Drill
Product Introduction
7655 rock drilling is a high efficiency rock drilling machine. It’s widely used in mining and roadway drivage of drilling operation. Also it’s a important tool for railway, water conservancy,and construction. It can be used with FY200B oiler and type FT160A (FT160B,FT160C)air leg.It can used for drilling the medium hard rock for wet drilling, drilling horizontal and inclined hole.chinacoal05
Technical Parameters
| Product Model | 7655 | |
| Weight (kg) | 24 | |
| Length (mm) | 628 | |
| Shank size (mm) | H22×108 | |
| Drilling diameter (mm) | 32-42 | |
| Piston diameter (mm) | 76 | |
| Piston stroke (mm) | 55 | |
| Air Pressure (at 0.5MPa) | Air consumption (L/s) | ≤54 |
| Impact frequency (Hz) | ≥36 | |
| Rotation (r/min) | 300 | |
| Air hose inner diameter (mm) | 25 |
