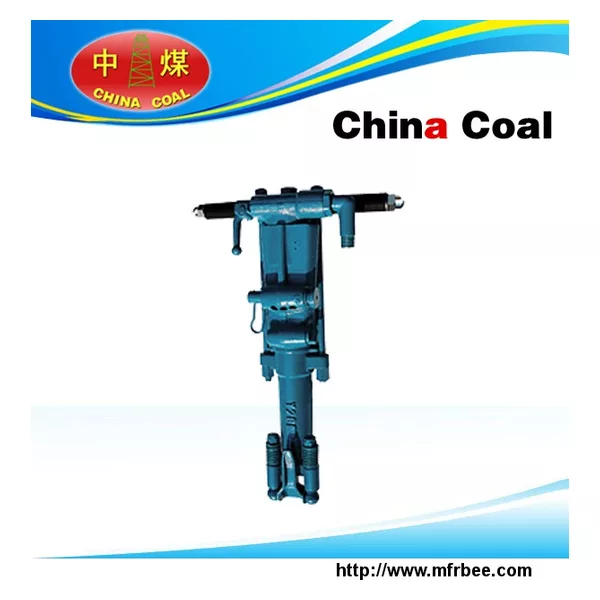

YT27 Rock Drill
Product Quick Detail
- Place Of Origin
- China
- Packaging
- according to your requirkments
- Delivery
- 7 Days
Specifications
YT27 Rock Drill
Product Introduction
YT27 hand rock drill is rock drilling equipment with high efficiency. It is widely used in rock drilling. It's very important to coal mine, tunnel, railway traffic, water conservancy and so on. YT27 hand rock drill is suitable for hard rock, concrete (f=8~18) drilling, blasting, breaking works. Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.chinacoal05
Technical Parameters
| Type | YT27 |
| Weight | 26 (Kg) |
| Length | 668 (mm) |
| Cylinder dia | φ80 (mm) |
| Piston stroke | 60 (mm) |
| Working pressure | 0.4~0.5 (Mpa) |
| Impact energy | ≥70 (J) |
| Impact frequency | ≥36 (Hz) |
| Air consumption | ≤85 (L/s) |
| Working water pressure | 0.2~0.3 (Mpa) |
| Air pipe inner dia | φ25 (mm) |
| Water pipe inner dia | φ13 (mm) |
| Rock drill hole dia | φ34~φ42 (mm) |
| Rock drill hole depth | 5 (m) |
| Shank size | 22×108 (mm) |
Impact frequency (Hz)
≥36
Rotation (r/min)
300
Air hose inner diameter (mm)
25
