Airport fence
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Plastic film then pallet
- Delivery
- Within 15days
Specifications
AIRPORT FENCE

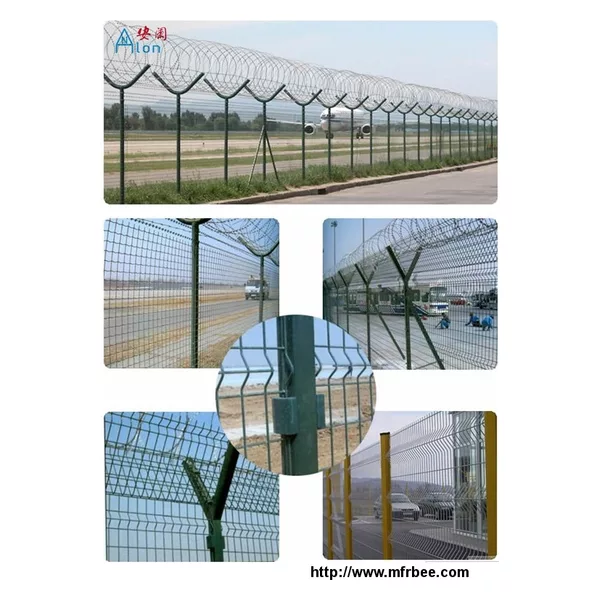

Airport fence also call “Y-shape-security fence”, is a high tensile and security airport fence which consisted by v-shape bracket, reinforced welded mesh panel, anti-thief fittings and concertina razor wire.
In the recent years, airport fence is widely used in airport, military sites and etc., which requires high security level.
We suggest to add concertina razor wire onto the top of welded mesh fence, as it will enhance the safty protection capability. A good corrosion resistance as the surface finishing by electric galvanized, hot dipped galvanized, powder coated, pvc coated and etc..
Airport fence are high security, anti-climb, SBS fasteners combine the panels. Airport fence efficiently prevent the destructed disassembly by human, also there are four reinforcement curves which enhance the strength of the fence panel.
1. Panel
| Panel | Mesh | Wire Thickness | Surface Treatment | Panel Width | Folds NOS. |
Panel Height |
Fence Height |
| mesh Panel |
50x100mm 55x100mm |
4.00mm 4.50mm 5.00mm 6.00mm |
Galvanized and Electrostatic polyester coated or PVC coated or Hot dipped galvanized |
2.50m 3.00m |
4 | 2000mm | 2700mm |
| 5 | 2300mm | 3200mm | |||||
| 6 | 2600mm | 3700mm | |||||
| 2 | 530mm | 2700mm | |||||
| V panel | 630mm | 3200mm | |||||
| 730mm | 3700mm |
2. Y Post -(RHS)
| Profile | Wall Thickness | Surface Treatment | Length | Base Plate | Rainhat |
| 60x60mm |
2.0mm 2.5mm 3.0mm |
Galvanized and Electrostatic polyester powder coated Or hot dipped galvanized |
2700mm I + 530mm V |
Available On request |
Plastic or Metal |
|
3100mm I + 630mm V |
|||||
|
3600mm I + 730mm V |
3. Support post:This kind of post will be put at 25m or 30m intervals .
| Profile | Wall Thickness | Surface Treatment | Length | Base Plate | Rainhat |
| 60x60mm |
2.0mm 2.5mm |
Galvanized and Electrostatic polyester powder coated |
1900mm / + 400mm I |
Available On request |
Plastic or Metal |
|
2200mm / + 500mm I |
|||||
|
2500mm / + 500mm I |
4. Top concertina razor wire:
| Type | Core wire /Blade thickness | Surface Treatment | Length | Outside diameter | Clips |
| BTO-22 | 2.5/0.5mm | Hot dipped galvanized | 8-10m/roll | 500mm | 3 lines |
| 600mm | |||||
| 700mm |
5. Fittings and tools:
Mainly including clips for connecting the mesh panel and Y post;
Clips for connecting the V panel and Y post;
Clips for connecting V panel and mesh panel.
