Liner Making Machine
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Advanced Machines Make Quality FRP Pipe Liners
Liner making machine, as its name implies, is specially designed for fabricating the liner layers of fiberglass reinforced plastic (FRP) pipes. It has auto resin spraying device and Taida PLC numerical control device. Thus, resin can be sprayed in accurate quantity to prevent waste phenomenon. Meanwhile, the film, mat and grid fabric are winded automatically to the mandrel by a trolley moving horizontally along the mandrel.
Equipped with tension brackets, our liner making machine allows for smooth & precise lap joints without any artificial nonconformity and inaccuracy. Meanwhile, it adopts frequency conversion linkage control system between the mandrel and moving trolley, that is to say, the trolley can move in different speeds accompanied with the mandrel. In addition, the trolley moves smoothly by gear wheel and it has monitor platform to convenient control & operation.

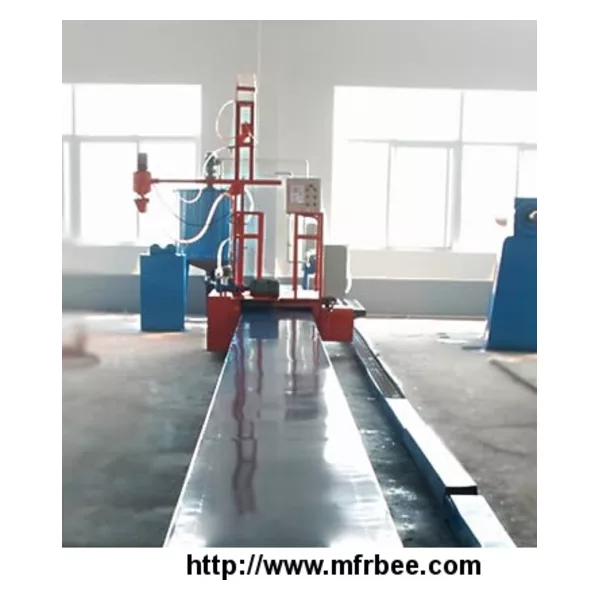

Liner making machine for liner manufacturing of FRP pipes.
Liner making machine is equipped with Taida PLC device for accurate control.
Composition:
- Liner making rails.
- Liner making driving headstock.
- Tail stock.
- Liner making trolley.
- Taida PLC numerical control device
- Resin delivery system.
- Spray heads.
- Pneumatic pressing roll.
- Polyester film winding stand, etc.
Details:
- Pipe diameter of liner making: up to 2600mm.
- Workable length: up to 12m.
- Rotation speed: 3r/min to 30r/min.
- Speed of trolley: 9m/min.
- Machine height: 1600mm.
- Covering areas: 38m × 19m × 2.8m (L × W × H).
- Load capacity: 7.5kW.
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:1998
- Address:No.6 east of Rubber Road, Northern Industry Area, Hengshui, Hebei, China.
- Contact:Joy Li
