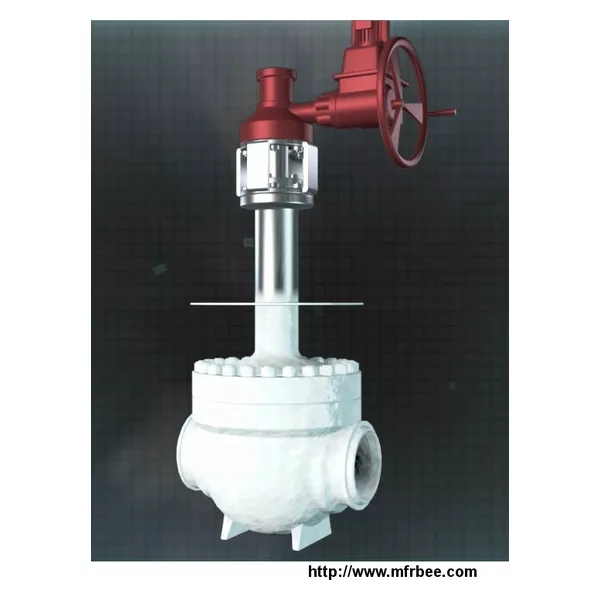

Cryogenic Ball Valve

MAIN FEATURES:
Cryogenic ball valve is suitable for service of working temperature down to －196℃, such as LNG, LPG, and air separation industry. The cryogenic trunnion ball valves are produced by the most advanced technology. It is designed with LIP SEAL which can keep valves with excellent sealing performance in ultra-low temperature. Wuzhou cryogenic test laboratory can test valves up to NPS32.
Design Features
Design standard as per: BS6364、GB/T 24925
Bonnet extended
Low fugitive emission control
Lip seal
Cavity pressure self relief
adopt import seat material of stable low temperature performance
The seat and pressure relief structure can be adapt varies working condition
Top entry structure is convenience to on-line maintenance
Product Range
Body material: Stainless Steel, Cryogenic Alloy Steel, Dual-Stainless steel
Floating and trunnion mounted ball valve(Side and Top Entry)
Nominal diameter:1/2"～32"
Pressure range:Class150～1500
End connection: RF, RTJ, BW
Working temperature:-196℃～+200℃
Operation : wrench, worm gear, electric, pneumatic actuator, gas over oil actuator, electro-hydraulic actuator , etc. http://www.qlvalves.com
