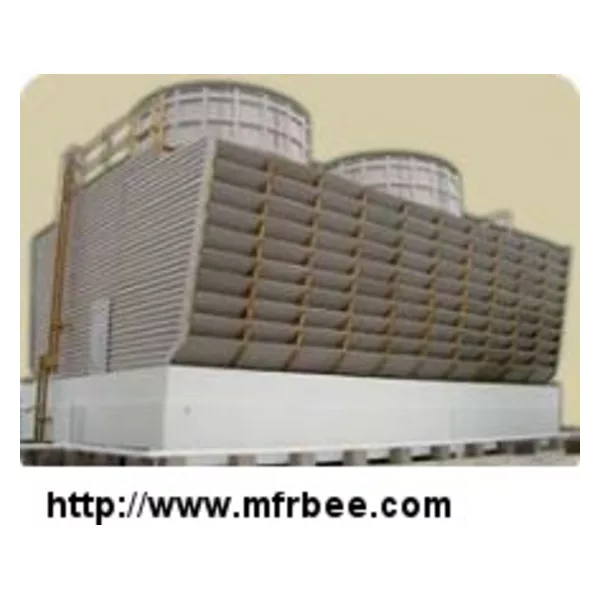

Timber Cooling Tower

Timber cooling tower also named wooden cooling tower , who was developed to offer greater cooling capacity in smaller space with lower operating costs. Wooden cooling tower are generally constructed over sumps designed to accommodate wooden cooling tower.

Wooden cooling tower gives 100% cooling efficiencies It’s give good appearance flow rate from 5 M³/Hr To 500 M³/Hr gives differences in temperature 4°C To 30°C Availability of Capacities from 5 TR T0 1000 TR in single cell, A wooden cooling tower available in a wide selection of frame sizes to efficiently serve application requirements.

Capacity Of Cooling Tower

Induced draft timber cooling tower are deign with our well experience engineers, they usually design according to customer request and their specific details given like LPM, inlet and out let temperature and WBT, Cooling tower dimensions and maximum height cooling tower capacity and size shall be calculated with this specific details provided by the customer.

Cooling Tower Frame Work

All structural framework are chemically treated pinewood joint shall be through hot dip galvanized bolts and nuts and steel and nails shall be stainless steel.

Cooling Tower Filling

Fill splash bars shall be consist of treated wood, drift eliminator shall be designed to limit drift loss,

Cooling Tower Distribution System

Coast iron body adjustable distribution valves with locking bar shall be included, water disrepute uniformly over the entire fill area.

Cooling Tower Mechanical Equipment

Cooling tower fan 4 or more aluminium blades, each can adjustable individually attached iron hub, oil gauge shall be extended outside the fan

Features:

• The location of this wooden cooling tower can be closer to the plant as there is no problem of drift
• There is no loss of efficiency because of the recirculation of the discharge of hot air from the tower top at significant height
• Our quality of wooden cooling tower design is superior
• This wooden cooling tower provides a fill pack that is wooden and a sprinkler in a design that maximizes efficiency and economy.
• Target equipments wooden cooling tower is highly reliable as well as durable
• Target equipments Cooling Towers fans and sprinkler provide great cooling in an area of minimum plan , with reduced energy
• No cost of operation and so cost effective
• The risk of fire is negligible
• The minimum approach of the wooden cooling tower is around 4.5ºC
• Target equipments wooden cooling tower can be closely grouped thus saving height
