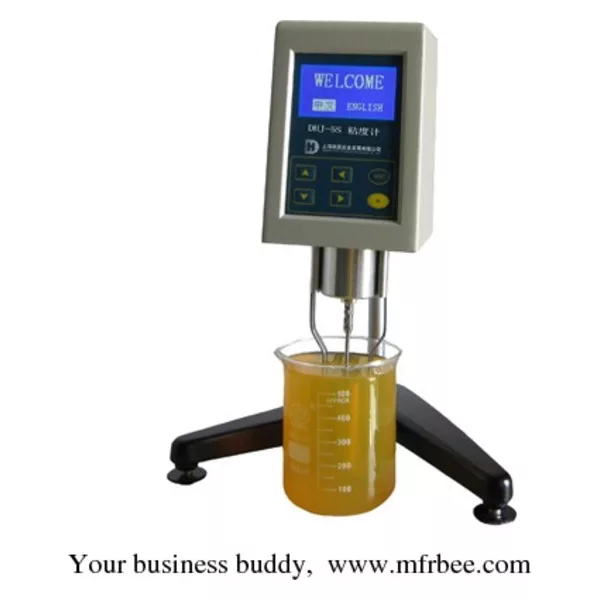

Digital viscometer DHJ-5S basic parameters | |
---|---|
Measuring range | 1 ~ 1 × 10 5 mPa . s |
Rotor Size | 1-4 rotor Optional rotor No. 0 to 0.1mPa.s low viscosity can be measured |
Rotor speed | 3,6,12,30,60 rev / min |
Automatic transmission | Can automatically select the appropriate number and speed of the rotor |
Select interface | Chinese / English |
Reading to stabilize the cursor | Bars full grid box is displayed when the cursor is basically stable readings |
Measurement Accuracy | ± 2% (Newtonian liquid) |
Power supply | AC 220V ± 10% 50Hz ± 10% |
Work Environment | Temperature 5 ℃ ~ 35 ℃, relative humidity less than 80% |
Dimensions | 370 × 325 × 280mm |
Net weight | 6.8 kg |
Product Features | |
Product Features: DHJ-5S digital display viscometer viscometer factory is the upgraded product. The instrument uses advanced mechanical design technology, manufacturing technology and microcomputer control technology, data acquisition right; optional blue backlight display, high brightness LCD display, the data show clear. The instrument has high sensitivity, the test results are reliable, easy to operate, nice shape and other characteristics, is used to measure the absolute viscosity of Newtonian fluid and non-Newtonian fluids the apparent viscosity of the instrument can be widely used oil, paint , plastics, drugs, food, paints, detergents, and other fluid viscosity measurements. | |
Works | |
The instrument number viscometer, rotor driven by a variable speed motor for constant speed by rotating.When the rotor rotates in a liquid, the liquid will have an effect on the viscosity of the torque on the rotor, the greater the viscous torque; the contrary, the smaller the viscosity of the liquid, the smaller the viscous torque of the viscosity on the rotor torque by the sensor is detected, the computer processing the measured viscosity of the liquid obtained. This instrument uses microcomputer technology, can easily set range (number and speed of the rotor), the sensor detects the digital processing of the data, and on the display clearly shows that the measurement of the rotor set number, speed, viscosity of the liquid under test and the percent of full scale values and so on. DHJ-5S is equipped with four rotors (1,2,3,4) and 4 stall speed (6,12,30,60 rev / min), which consists of 16 kinds of combinations can be measured within the measuring range various liquid viscosity. | |
Unpacking list | |
Host computer | A |
Rotor No. 1,2,3,4 | 1 set (Note: 0 Number rotor is optional) |
Power Adapter | 1 set |
Protection frame | A |
Base | A |
Lifting column | 1 set |
Instructions | 1 |
Certificate | 1 |
Warranty | 1 |
Hexagon head board | 1 |
Wrench | 2 (Note: The size of each one) |
