Wireless fall down emergency button SOS panic button

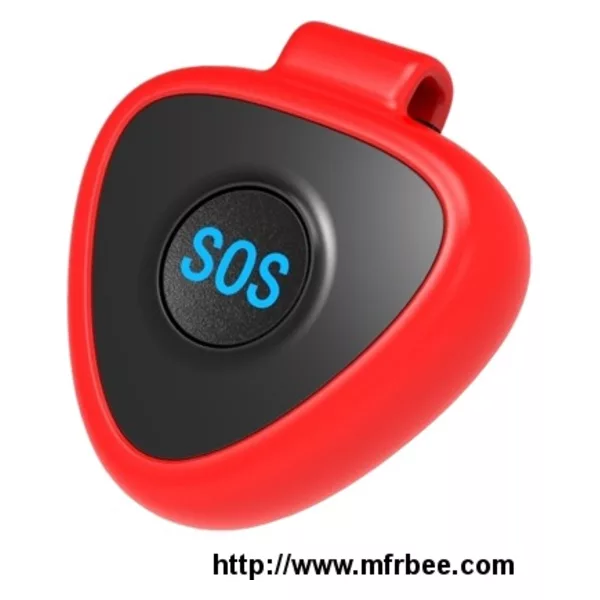

EM-90 Wireless Fall Down Emergency Button

Fall detector

Fall down sensor

SOS pendant

Emergency Call button

Wireless panic button

The King Pigeon EM-90 fall down emergency button works with wireless alarm system for help people to get necessary assistance on fall down incident or on emergency situation.With built-in a smart fall detection technology,the fall down emergency button can reliaze when users falling down,regardless of whether or not consciousness.

Works with wireless GSM alarm system,users can get emergency help immediately if users experiencing an actual fall incident, furthermore, press the SOS button on pedent can send alert signal to alarm system too.

Parameters:

Power: 3V DC, Button Cells.

RF Code: PT2242

RF Frequency: 433.92MHz

Oscillation Resistanc:e 3.3Mohm

Transmission Distance: 30~80meters indoor

Static Current: 8uA - 9uA

Peak Current: 7.2mA-8.5mA(sending signal)

Battery Life time: One and a half years

IP Grade: IP65

Dimensions: 5.352cm

Weight: 30g

Works with

King Pigeon A10A11A20 GSM Elderly Guarder Alarm panel.

King Pigeon S100S110S120S160 GSM wireless alarm panel.

Other universal wireless alarm systems.

How it works

1. Fall down incident alarm When the fall down has been detectedl,at the 6th second,indicator will flashing quickly and send wireless alert signal to alarm panel on the 15th second.Alarm panel send SMS or call to Central Monitroing System or related persons for alarming or communication.

2. SOS alarm Press the SOS button for more than 3 seconds, SOS indicator flashing quickly and the emergency alert signal will send to alarm panel.

In case of False Alarm

Due to the daily life activities(like some sports,sit back on a coach,etc.),sometimes the fall down button may detect a fall incorrectly, this situations may caused false alarm. However, users can manually cancel the alert signal by pressing the emergency button or make it on normal stand up position while the red indicator is flashing quickly. Users will know that the fall down alarm has been canceled successfully when the indicator flashing slowly twice.

Users can also cancel a false alarm by pressing the stop button on A10A11 alarm panel or Cancel button on other alrm panels to cancelstop the alarming. If the alarm is not canceled within the allotted time, alarm panel will send SMS or call CMS or related persons,users could talk with them for clarify the situation.If the CMS or related person can’t communicate with users,emergency help service should be dispatched asap.

Typical Solution---Social Elderly monitoring alarm:

EM-90 button + A10 GSM elderly alarm + KingCenter CMS-01
