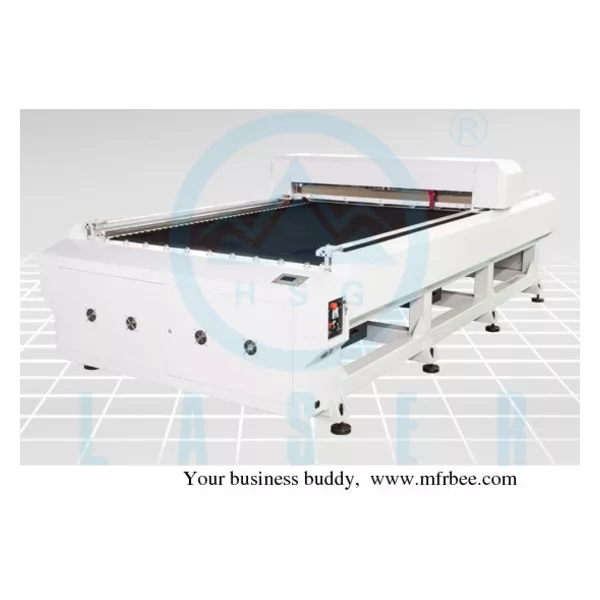

HS-B1530 acrylic and wood laser cutting bed
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Seaworthy wooden cases with packaging film and protecting foam inside
- Delivery
- 7 Days
Specifications
Product description:
1. HSG Laser’s pretty good machine------HS-B1530. It’s specialized designed for high precision cutting demand users.
2. Like the name, this machine mainly used for cutting acrylic and wood, so is mainly used in advertisement and craft industries. It can cut 30mm acrylic and other non-metal materials.
3. Acrylic laser cutting bed HS-B1530’s advantages: high precision, high efficiency, mass production, smooth cutting edges, extract dust and smoke and so on.
4. The features of wood laser cutting machine HS-B1530:
(1) The machine has a good-looking appearance, the machine body is white, so it’s very clean, can make people feel comfortable, warm and sweet.
(2) It has a big working table, it’s 3000*1500mm, so it also has a big weight------1000kg. The size is 3470*1892*1178mm.
(3) Acrylic laser machine HS-B1530 through 600° C heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, can make sure 20 years usage without deformation.
(4) The laser cutting bed HS-B1530 for wood use the collimator to install and adjust guide rail, precision: 0.01mm. Synchronizing wheels bouncing testing to avoid saw tooth when cutting and precision reaches 0.02mm.
| Technical parameters | ||
| 1 | Transmitting System | Fixed by steel strips, gear transmission |
| 2 | Max Running Speed | 48m/min |
| 3 | Repeated Precision | ±0.01mm |
| 4 | Power Supple | AC220V±10% 50HZ |
| 5 | Position Precision | 0.02mm |
| 6 | Machine Total Power | ≦1800W |
| 7 | Working Temperature | 0° C-40° C |
| 8 | Working Humidity | 5-95% |
| 9 | Supported Format | CDR BMP PLT GPEG DXF DST |
| 10 | Applicable Material | Acrylic, LED and LGP, MDF, plywood, advertising decorative material, electrical panel etc |
About HSG laser:
HSG laser is the best laser cutting bed manufacture in China and HSG laser also is the number hot-sale laser cutting bed producer in China.
HSG laser advantages:
1. HSG laser is the only one manufacturer carrying out 100% testing in the whole Chinese laser industry.
2. HSG laser is the only one Chinese supplier provides 3 years guarantee for the machine in China.
Company certificates:
1. CE certificate.
2. ISO certificate.
3. FDA certificate.
Contact information:
1. Website: www.hsglaser.com
2. Email: linda@hsglaser.com
3. Tel: +86-757-89919799
4. Fax: +86-757-89919700- Country: China (Mainland)
