Carton Box Plotter Sample Machine

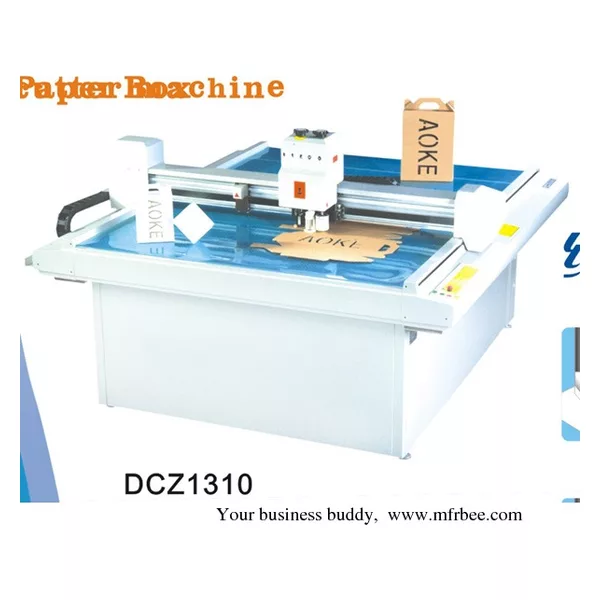

DCZ1310 carton box die cut plotter sample flat bed cutting machine

Effective cutting area(mm) 1300*1000

configuration oscillating blade,pen,creasing wheel,servo motor

function it is used in carton&paper box packing factory,it can cut and crease 15mm corrugated paper

max speed 1000mm/s

smallest cutting diameter 6mm

maximum cutting thickness 15mm

control line and driver servo

overlapping precision Less than or equal 0.1mm

vacum 5.5KW

data form HPGL

voltage 220V Plus or minus10% 50Hz

data port PCI port

data transmission speed 10MB/S

Using dimension (mm) 1960*1890*1150

Input cushion area 32MB
