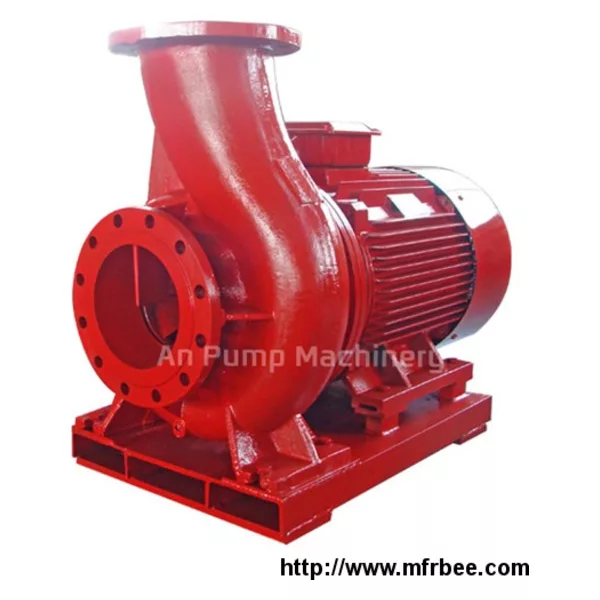

Fire Pump

Packaging: N/A

Delivery: 15 Days

General

QI model pump is single-stage end-suction(axial suction) cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles. The marked and rated performances and dimensions adopt ISO2858 international standard.

QS model pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 125℃ ,

QD (G) model pump is a horizontal multi-stage centrifugal pump and suitable for transporting pure water (with the contained foreign matters' content less than l % and graininess less than 0. 1mm) and other liquids of both physical and chemical natures similar to those of pure water.

AZX Model self-priming Pump is kind of energy-saving pump, developed by us after studying relevant technical data both domestic and abroad, and also making much improvement. The SZ series self-priming centrifugal pump, featured by a compacted structure, easy and stable operation, easy maintenance, high efficiency, long life, strong self-priming capacity etc.

Structure

QI series pump QS series pump

QD series pump ASW series pump

Performance

QI series pump performance

Flow rate: 3.4 – 460 m3/hr

Head: 3.4 – 132.5 m

Power: 0.55 – 110 kw

QS series pump performance

Flow rate: 110 – 14400 m3/ hr

Head: 8 - 140 m

Power: 22 – 3450 kw

QD series pump performance

Flow rate: 3 – 684 m3/hr

Head: 15.78 – 684 m

Power: 4 - 3400 kw

AZX series pump performance

Flow rate: 1 – 600 m3/hr

Head: 20 – 75 m

Suction height: 6.5 m

Application
