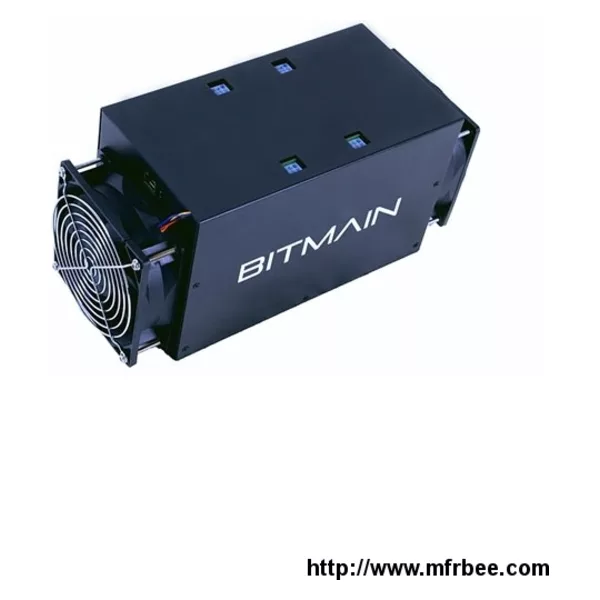

AntMiner S3 is the third generation Bitcoin mining rig made by Bitmain. It uses the state of the art BM1382 chip powered by the 28nm tech process with ultra-low power consumption, targeting the best combination of power efficiency and low capital expenditure for mining investors.

Specifications:

Hash Rate: 441 GH/s±5%

Power Consumption: 340 Watt at the wall

Power Efficiency: 0.77 J/GH on wall

Power Supply: 12V DC

Size: 331 mm x 137 mm x 160 mm

Fans: Two 14038 fans mounted on both front and back ends.

Operating Temperature: 0 °C to 35 °C

Complied with: FCC / CE

Network Connection: Ethernet

Notes:

1) Power consumption: This figure depends on the PSU efficiency, ambient temperature and the accuracy of the power meters.

2) PSU: You have to prepare your own the ATX PSU. The S3 ships without a PSU. There are 4 PCI-e connectors for +12V DC input, but it only needs to connect two of them if without overclocking (PSU not included). Don’t parallel connected different DC input from different PSU into the same Hashing board.
