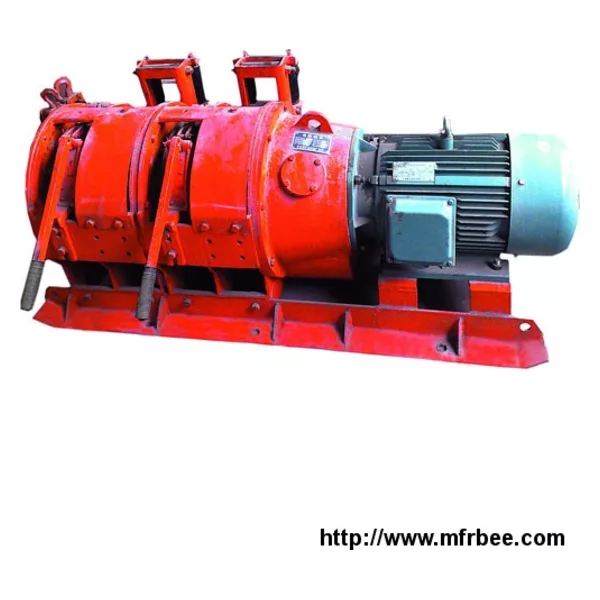

electric mine winch
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 15 Days
Specifications
JPB electric scraper winch , rake mine winch chinacoal07
Specifications
1.scraper winch
2.high quality and excellent performance
3.Widely used in mine
Product Introduction
JPB series mine scraper winch is applied to stone ore moving and filling work under the mine or in the mine pit, it can work in the horizontal ground or with less than 44 degree slope.
The main components of the winch: Deceleration device, main roll, Vice reel, control devices, wire guiding device and motor. These parts were installed inside and outside the shell, the shell is a good steel parts, both to protect the supporting role, but also to bear all the load. It is connected on the basis of two slide bolt.
1. Scraper winch Feature:
1.scraper winch
2.high quality and excellent performance
3.Widely used in mine
4.Standard packing and short delivery
2 . Mining scraper winch usage:
JPB series scraper winch is mainly used for metallic ore and other mines pit or outdoor ore handling or fill work! Mainly used for the level of the shipment, also can be used for Angle is not more than 44 º of the shipment, can be used as the slope lifting equipment. The driver can winch by hand in the control.
Remark: The scraper winch can not be used as the lifting equipments. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.
By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.
3. Mining scraper winch working principle:
wire rope wrapped around the drum tow the rake do reciprocating movement to transported materials.
Main Parameter
| Model | 2JPB-7.5 | 2JPB-15 | 2JPB-22 | 2JPB-30 | 2JPB-55 |
| Average tensile force(KN) (major wire rope ) | 8 | 14 | 20 | 27.5 | 44 |
| Average speed Major wire rope (m/min) | 60 | 66 | 72 | 72 | 72 |
| Average speed Deputy wire rope (m/min) | 60 | 90 | 96 | 96 | 108 |
| Major wire rope Diameter(mm) | 9.3 | 12.5 | 14 | 15.5 | 18.5 |
| Deputy wire rope Diameter (mm) | 9.3 | 11 | 11 | 14 | 16 |
| Winding drum Diameter(mm) | 205 | 225 | 280 | 280 | 350 |
| Winding drum wheel rim Diameter(mm) | 350 | 435 | 510 | 510 | 625 |
| Winding drum Width(mm) | 80 | 125 | 160 | 160 | 180 |
| Rake Capacity (m3) | 0.15 | 0.3 | 0.6 | ||
| Major winding drum wire rope Capacity (m) | 45 | 80 | 80 | 90 | 100 |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Europe,Americas,Oceania
- Founded Year:2001
- Address:No.11, North of Kaiyuan Road, High-tech Zone, Jining City
- Contact:mike jiang
