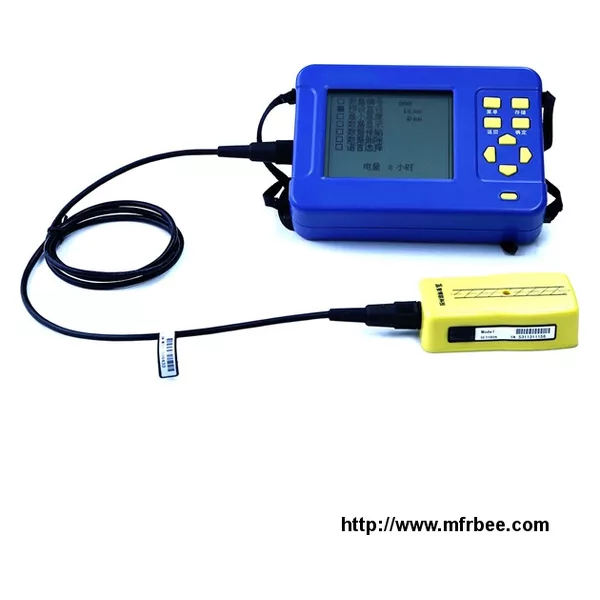

ZBL-R620 High Sensitivity Portable Concrete Rebar Locator
Product Quick Detail
- Place Of Origin
- china
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 15 Days
Specifications
rebar detector, concrete rebar detector, ZBL-R620 High Sensitivity Portable Concrete Rebar Locator chinacoal07
ZBL-R620 High Sensitivity Portable Concrete Rebar Locator
Application:
1. Testing the location, distribution, direction, and diameter of the rebar and the thickness of concrete cover in concrete structure projects such as bridges, tunnels, walls etc. Detecting Ferro magnets in non-ferromagnetic media;
2. Evaluating the quality of construction;
3. Evaluating the integrity and the durability of existing structures;
4. Testing the quantity of rebar when evaluating and developing the old structure;
5. Testing the distribution and direction of electric cables and plumbing inside walls and floors.
Feature:
1. Uni-probe with two detect range: the uni-probe has both a small and large detect range;
2. Detecting closely located bars: can detect closely situated, parallel bars with 1.5 diameter gap;
3. Actual distributing map of bars: Can output the actual distributing map of bars after several times scanning;
4. Transverse Section Bars Distributing Map: Can output the transverse section map of bars distributing;
5. Test data may be transferred to computer via USB port, allowing real time analysis of data;
6. Rechargeable lithium battery; convenient, value for money, and environmentally friendly.
Technical parameter:
| Model | ZBL-R800 | ZBL-R650 | ZBL-R630A | ZBL-R630 | ZBL-R620 | |
| Protective layer thickness range (mm) | φ6~φ50 | φ6~φ50 | φ6~φ50 | φ6~φ50 | φ6~φ50 | |
| Max range(mm) | First range | 3~98 | 6~90 | 3~98 | 6~90 | 6~90 |
| Second range | 3~196 | 10~180 | 3~196 | 10~180 | 10~180 | |
| Max allowed error | ±1(mm) | 3~79 | 6~70 | 3~79 | 6~79 | 6~79 |
| ±2(mm) | 57~119 | 51~110 | 57~119 | 60~119 | 60~119 | |
| ±4(mm) | 70~196 | 70~180 | 70~196 | 70~180 | 70~180 | |
| Applicable range(mm) | φ6~φ50 | φ6~φ32 | φ6~φ50 | φ6~φ32 | φ6~φ32 | |
|
Max allowed error
for diameters measurement |
±1 | |||||
| Common type | ü | |||||
| Closely bars type | ü | |||||
| Transverse section bars | ü | × | ||||
| Grid type | ü | × | ||||
| Signal wave | × | Real time display | × | |||
| Scan range | Borderless | |||||
| Data correction | Automatic | Manually | × | |||
| Data transfer | U disk | USB | U disk | USB | ||
| Wireless transfer | ü | × | ü | × | ||
| LCD | 160×128 | 320×240 | 160×128 | |||
| Power | Built-in battery | DC:9V 5 batteries | ||||
| Size (mm) | 212×134×50 | 190×135×52 | 212×134×50 | 190×135×52 | ||
| Weight(kg) | 0.9 | 1.1 | 0.9 | 0.9 | 0.7 |
