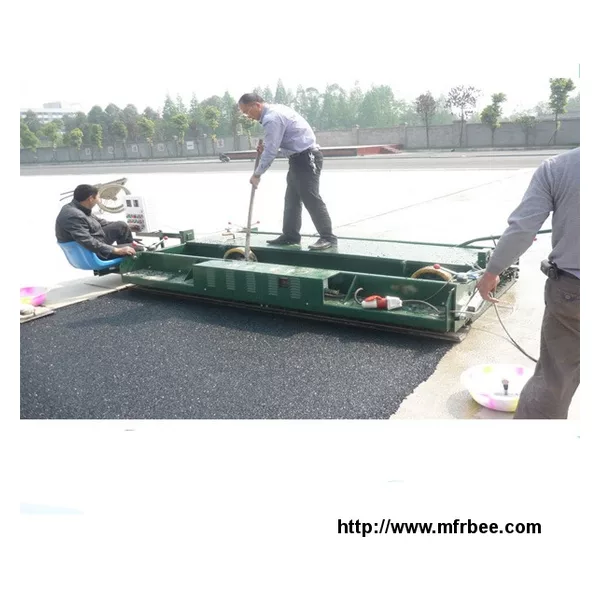

TPJ-1.5 Sports Running Track Paver Laying Machine

Product Quick Detail

Place Of Origin
china
Packaging
carton box, plastic bags, wooden cases or as your requirement
Delivery
15 Days

TPJ-1.5 type paver machine, Paver Laying Machine, TPJ-1.5 Sports Running Track Paver Laying Machine,chinacoal07

Product Introduction

TPJ-1.5 type paver machine

TPJ-1.5 type paver machine is a technology with higher levels of plastic track

laying machine, which employs advanced technology and Siemens frequency

stepless speed regulation of hydraulic gear to increase their degree of automation

built performance of the construction of venues able to satisfy the requirements

of the quality of the playing field to achieve target, with high efficiency, low

consumption,high-quality and easy operation, with long-term use of authentication,

by the majority of users at home and abroad.

Structure&Function:

1 Used for spreading, paving the bottom layer of plastic cement stadiums.

2 Framework: with a firm and stable welded H-type structure, and a rust-proof paint

layer, it may accommodate any poor condition in the construction site.

3 Front scratch board: welded joint structure, the ground clearance is manually

adjustable through a screw, which control the thickness of the floor layer. The width

may be adjusted through a limiting board.

4 Driving device: the main driving system is a motor-driven caterpillar chain,

with the speed smoothly controlled by a frequency converter, which is

feature as stably and precisely moving ahead or back in an motion. It may

be equipped with different caterpillar belt for different bottoms.

5 Walking Mechanism: the spreading machine may be manually moved or relocated

through a walking mechanism consisting of advanced ratchet lever system and lift.

6 Screed: The screed has four functions, viz. the adjustment of height, angle,

temperature, and vibration. The plastic cement material is vibrated, compacted and

paves while passing through the screed.

Product Parameter

Name Paver machine
Model TPJ-2.5 TPJ-1.5
Actual Width 2800mm 2100mm
Paving Width 2500mm 1500mm
Moving Speed 0.8-6m/min 0.8-6m/min
Paving Capability 500 sq.m./h 300 sq.m./h
Power 8kw 8kw
Temperature adjustment for electric

heating board

90-120 centigrade 90-120 centigrade
Machine Weight 850kg 700kg
Dimension 3000*1800*720mm 2200*1700*720mm
Packing Style Wooden case Wooden case

Remark:

1) Quality: Assessed and registered as meeting the requirements of ISO9001.CE

Certification.Get PICC cover.

2) MOQ: 1set

3) Delivery Time: within 3-5 days after receiving your payment

4) Payment Term: T/T

5) Package: wooden case packing or according to customer's requires

6) Warranty period: two years
